Eco Track Systems

UHF Table Top Desktop Reader

Model No: ETS-RD 05

Description

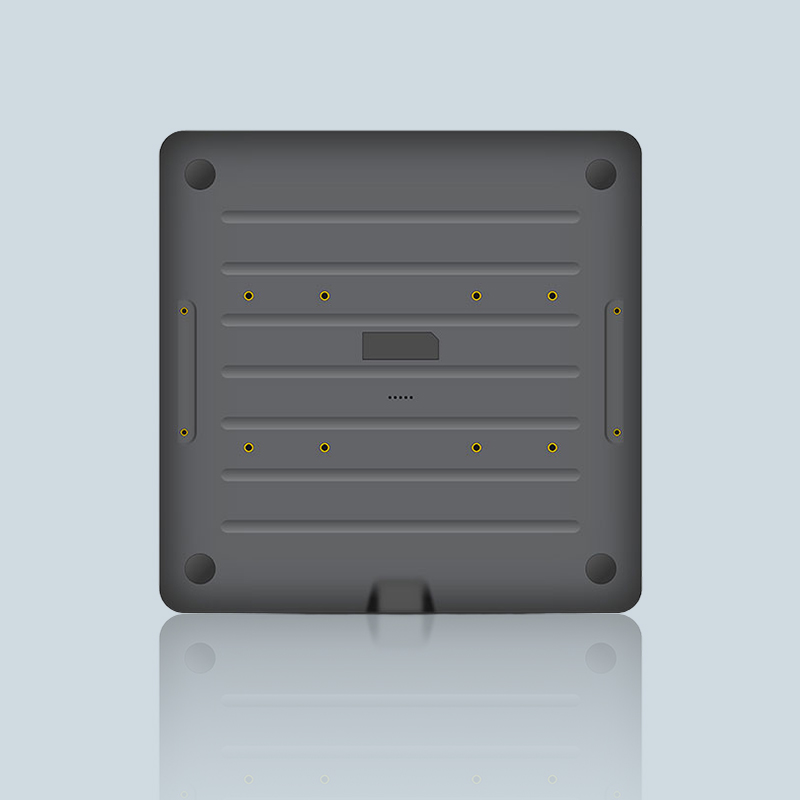

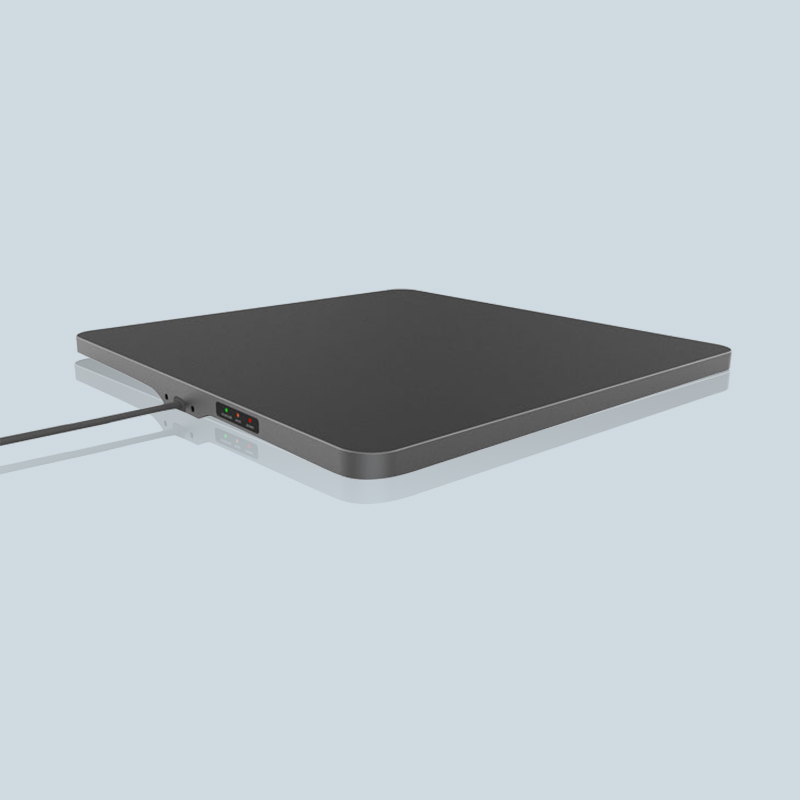

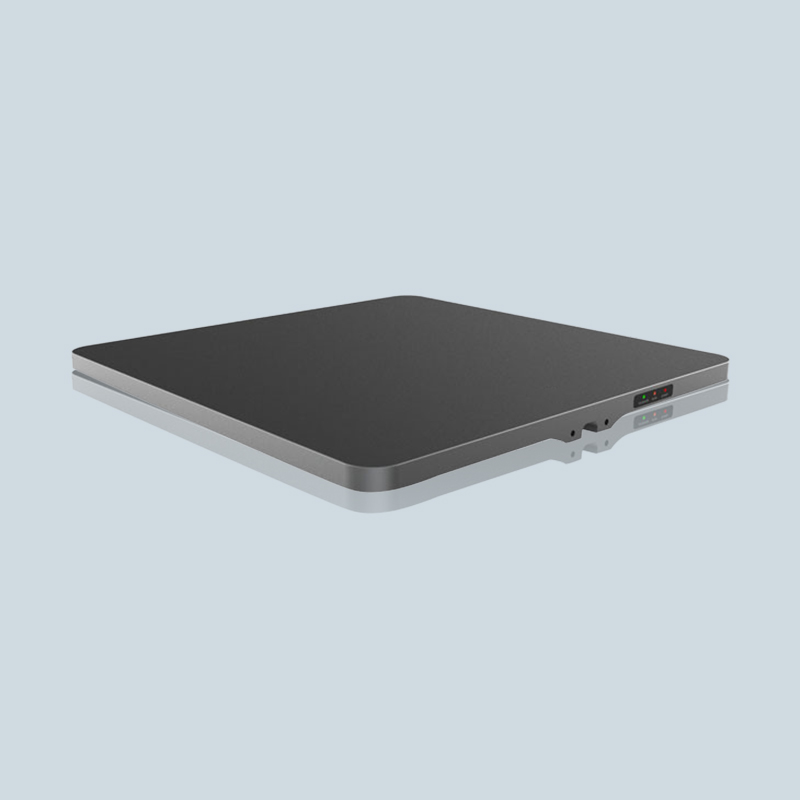

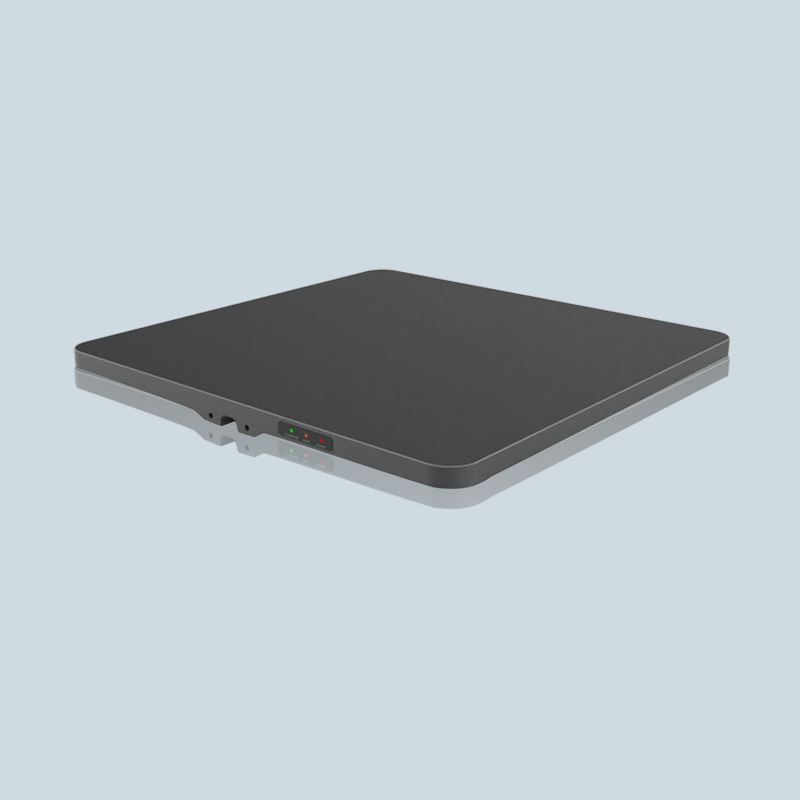

ETS-RD 05 is a highly effective desktop reader that works on UHF 865 - 928 MHz frequency. It has a superior read range of up to 50 cm and supports android, IOS and windows platform. The device is Bluetooth enabled which allows wireless data transfer to PC/laptop/tablet/mobile sets. Inbuilt LED allows visual identification of tag reading. With an anti-collision algorithm and high read/write capabilities, this model is a best fit for applications related to library automation, retail, inventory management and supply chain. Its compact design and light weight allow easy plug and play installation.

Features

Read Range: Up to 50cm*

Support USB, BT
Communication with PC

UHF 865 - 928 MHz

Weight: 1133 g / 39.96 oz.

Android /IOS

LED

IP65

Bluetooth: BLE 4.0

Application Areas

Library

Supply Chain Automation

Retail

Inventory Management

Manufacturing Unit

Technical Specification

Dimensions318 mmx318 mmx20 mm
Weight1133 g / 39.96 oz.
PortUSB Type-C
Power Supply ProtocolUSB 2.0
LED IndicatorPower
BT connection status
Working ( flash when scanning tags )
SDKUSB, Android / Windows
Bluetooth, Android / IOS
Type C USBUSB connection to realize data transfer
BTBluetooth Low Energy (BLE) 4.0
Operating Temp.-4 °F to 122 °F / -20 °C to 50 °C
Storage Temp.-40 °F to 158 °F / -40 °C to 70 °C
Humidity5%RH - 95%RH non condensing
SealingIP65
EngineCM310-4 module based on Impinj E310
CM510-4 module based on Impinj E510
Frequency865-868 / 920-925 / 902-928 MHz ( custom-design for
frequency band )
ProtocolEPC C1 GEN2 / ISO18000-6C
Output Power1dBm-30dBm, 1dBm ( stepper )
Read RangeUp to 50cm
