Eco Track Systems

UHF RFID Reader

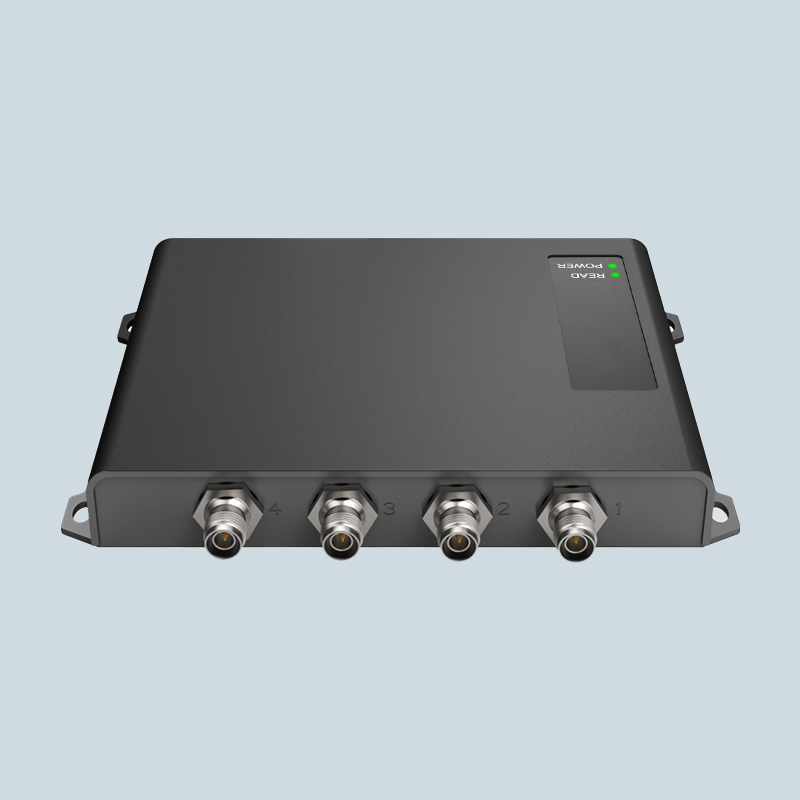

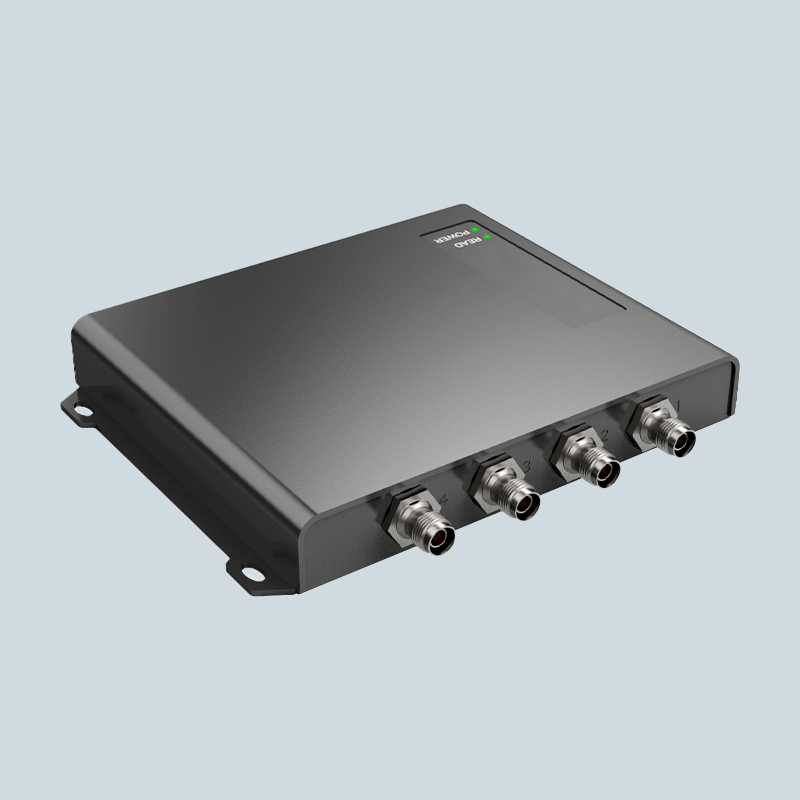

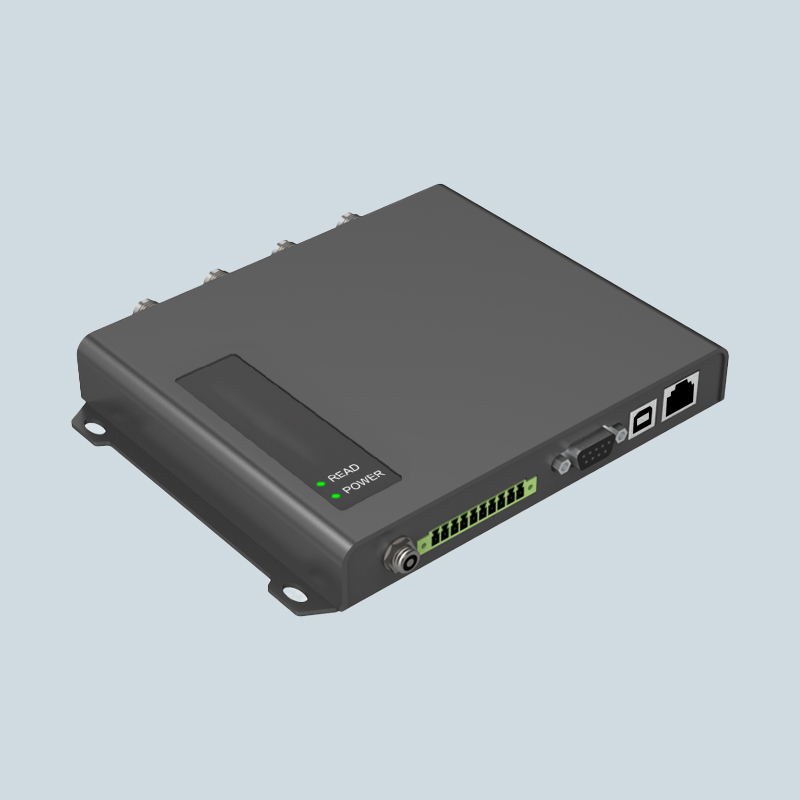

Model No: ETS- 4P 01

Description

ETS- 4P 01 is one of the most powerful and industrial grade multi-port RFID UHF Reader which can connect up to 4 Antennas. It has an excellent read rate of over 400 tags per second and is designed using the latest Impinj R2000chipset which is renowned to deliver excellent and seamless performance and efficiency. Being the best in class, it is widely used in applications where accuracy and read range are of prime concern especially to identify and read tags which are hidden. This reader is capable of delivering a read range of up to 15 mt when used with the right antenna. It is uniquely designed and pre-configured to work at its peak performance even in the harshest environment both indoor and outdoor. The reader supports RS232 and RJ45 (TCP/IP) interface and development platforms on Windows, Android – Java and Linux. It is one of the best readers to be used in projects related to attendance tracking in schools, workforce movement tracking in offices and production, library automation, toll ETC, inventory tracking in warehouse and production, laundry tracking, vehicle tracking at parking lots, event management etc.

Features

Impinj R2000 Chipset

UHF 865MHz-928 MHz

Interface: Rs232, RJ45

Antenna

Antenna: 4 Ports

Read Rate: 400 Time/Second

Compact Design

Industrial Grade

Application Areas

Attendance Tracking in School

Marathon Race Time Tracking

Warehouse

Warehouse

Toll Plaza

Event Management

Event Management

Inventory Tracking

Movement Tracking in Offices

Vehicle Management

Vehicle Management at Parking Lots

Production Line Management

Production

Technical Specification

SDK and Firmware Management
Firmware UpgradeDemo software
API SupportWindows platform– .Net / .Net core / C++ / Java SDK Android platform - Java
Linux platform – Java SDK
Physical Characteristics
Dimensions170mm x 120mm x 25mm
Weight0.5Kg
Housing Materialalumin
Visual Status IndicatorsPower/Stat
RFID Characteristics
Air ProtocolsISO/IEC18000-6B, 6C / EPC C1Gen2 C2GEN2 option
FrequencyCHN 920MHz 925MHz (CMI)
USA: 902 MHz-928MHz (FCC part 1
EU 865MHz 868MHz (ETSI EN 30220
Output Power0dBm-30dBm (±1dBm) adjustab
Chanel Bandwidth200K
Frequency stabilit±10p
Peak Inventory Spe> 400 tags/
Anti-collisionSupport multi-tag / intensive inventory
Work ModeFixed/hop frequency optional

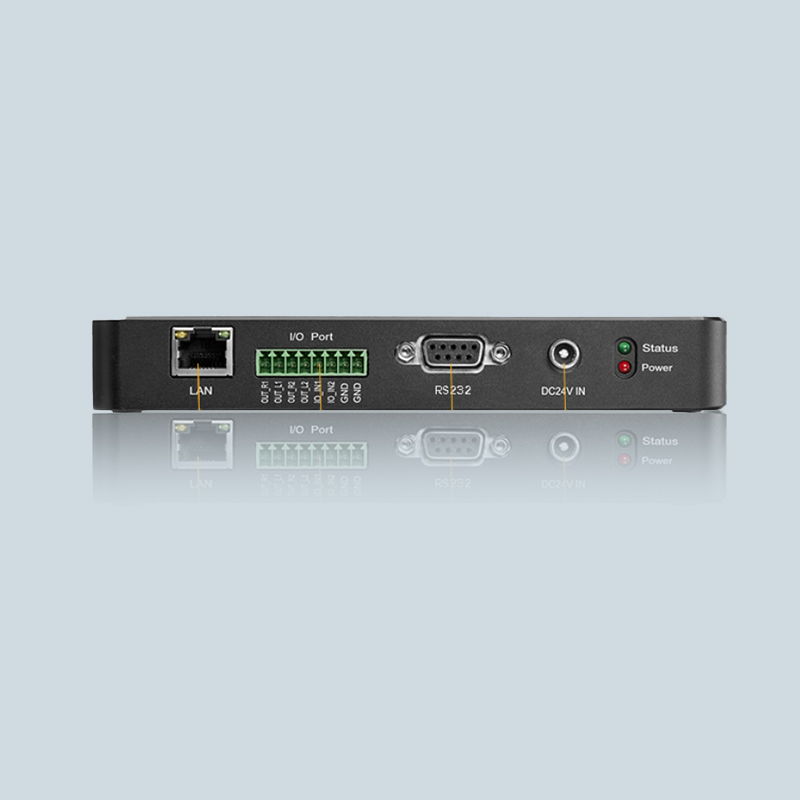

Connectivity
CommunicationsRJ45, RS-232
General Purpose I/O2 inputs(DC 0~24V), 2 outputs(DC_MAX:30V,2A;
AC_MAX:125V,0.3A), optically isolated (Terminal Block)
Power SupplyDC 24V/2.5A(Output power 30dBm, power consumption 8W)

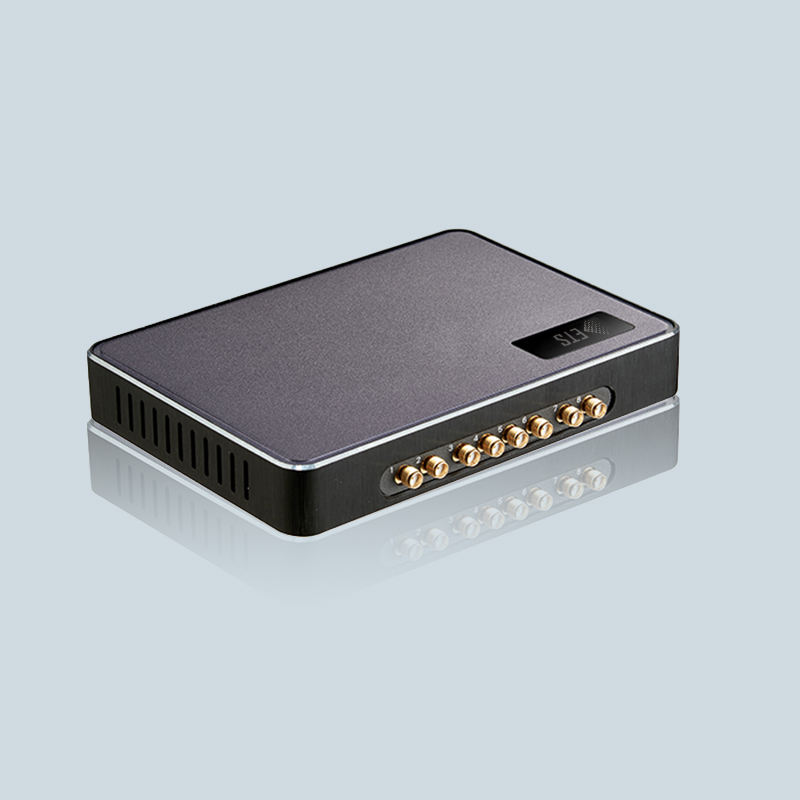

Antenna Ports4 / 8 SMA ports; circular or linear polarization; near and far field compatible
Environmental
Operating Temp.-20 -+ 70°C
Storage Temp.-40 -+ 85°C
Humidity5-90% non-condensing (+25°C)
SealingIP53
