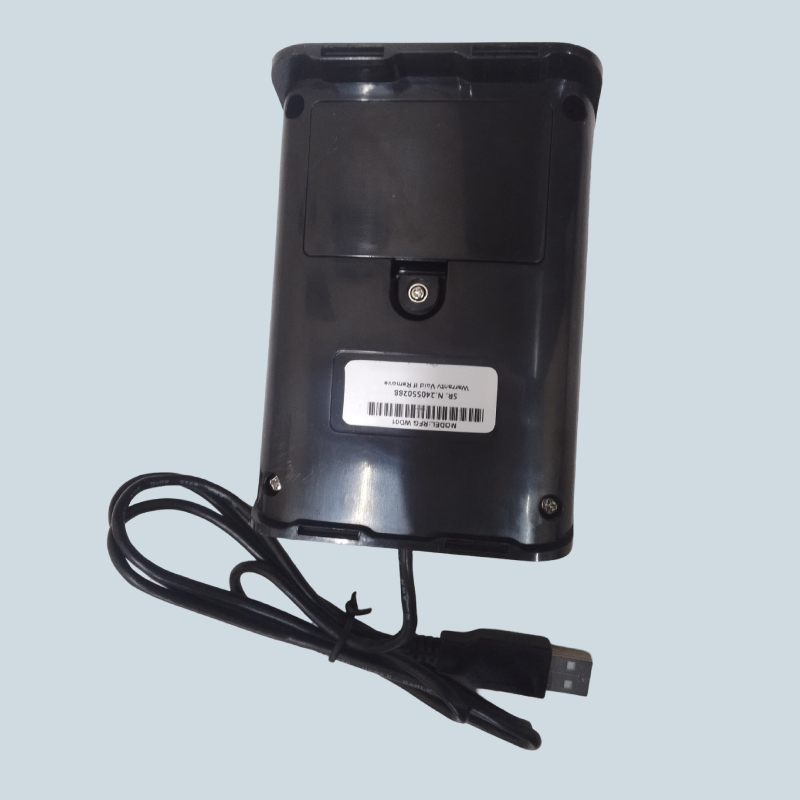

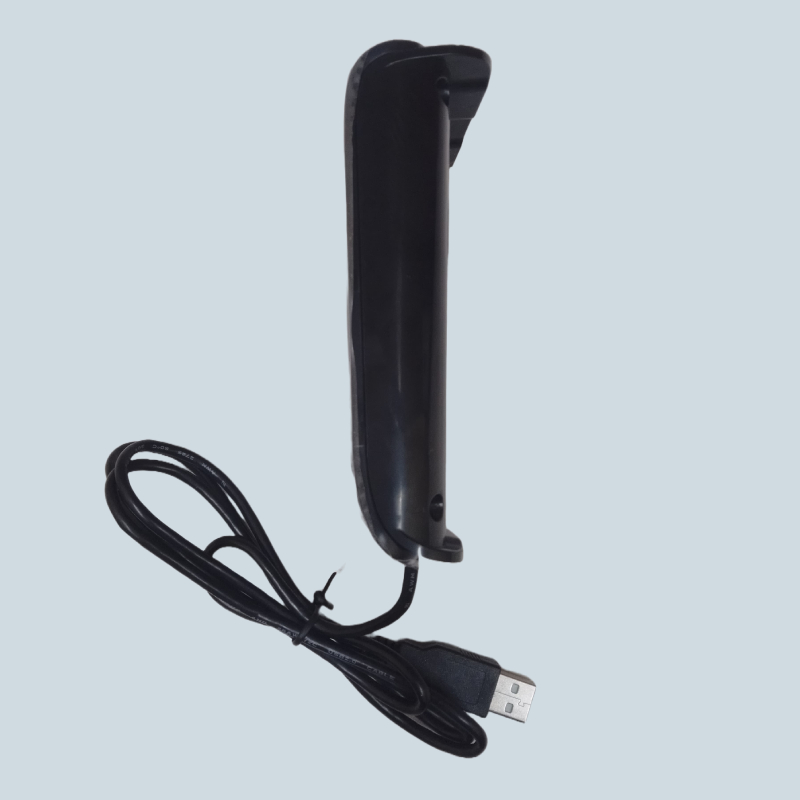

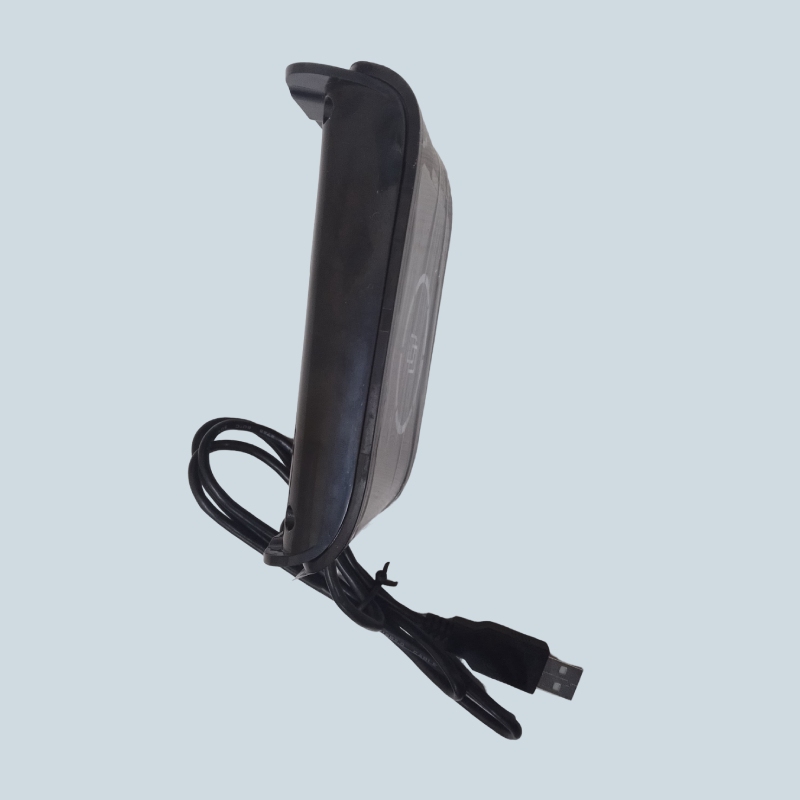

ETS-RD 02 is one of the most widely used desktop RFID reader which is used for registration and
encoding of tags and cards. It works on global UHF frequency protocols and is used for quick tag
authentication, tag read and write, activation and tag blocking /killing. With an anti-collision algorithm
and high tag read/write capability this device can be used in any industry application. It is portable in
nature and can be carried easily because of its compact design and quick installation method. It has an
inbuilt LED and buzzer system for easy identification. The reader is fully compliant with ISO
ISO18000-6C protocol and works on global UHF Frequency 865 – 928 Mhz. The product is IP55 rated
and is meant for indoor desk usage only.
Features
HF 865-928MHz
EPC Class 1 Gen2 ISO 18000-6C
Range
Up to 25 cm
USB
IP55
Keyboard Emulator
Application Areas
Card Recharge in Canteens
Students/Employee
Attendance
Asset Tracking
Gate/Flap Barrier Automation
Access Control
Retail Management
Issue - Return
Technical Specification
API Support
Window, Linux
Protocols
EPC C1G2 ISO 18000-6C
Dimensions
70mm X 112mm X 23mm
Housing Material
High grade plastic
Frequency
865-928MHz
Output Power
-2dBm-18dBm
Reading Range
Up To 25cm
Interface
USB-Keyboard emulator / HID/USB CDC (Visual Serial Port),Option for RS232/UART in
TTL leve l/ I2C
