UHF Handheld RFID Reader
Model No: ETS-5
Description
ETS-5 is an all new, upgraded and highly powerful RFID UHF Handheld Reader built on 5dBi circular polarized antenna and Android 11 platform. Powered by world Impinj E710 / R2000 chipset, the device delivers unparallel and seamless performance with read range of Up to 30 meters (based on tag and environment). Its superior configuration like 6-inch screen size, IP65 sealing,1.5-meter drop test with features like Camera, 4G, Wi-Fi, 2D Barcode scanning, NFC fingerprint recognition, GPS etc makes it as an ideal selection for application related to warehousing, production, banking, transport, retail, logistics etc.
Features
Android 11
6700mAh Built in 100mAh backup battery
4G / Dual-band WIFI
RAM+ROM: 4GB + 64GB (Optional)
5" / 6" Display
Octa-core 2.3GHz
UHF RFID (Impinj E710/R2000 Chip)
Barcode Scanning (Optional)
IP65 Sealing
1.5m Drop Proof
All-in-one UHF Design
Fingerprint Recognition (Optional)
NFC (Optional)
Secure PSAM
Front & Rear Dual Camera
Accurate GPS
Application Areas
Warehouse
Apparel
Jewellery Tracking
Asset Management
Production
Toll Plaza
| UHF | |
| Protocol | EPC global Gen 2 (ISO18000-6C) |
| Frequency | 865MHz-928MHz |
| Engine | CM710-1 module based on Impinj E710 CM2000-1 module based on Impinj R2000 |
| Output power | 1W (30dBm, +5dBm to +30dBm adjustable) |
| Antenna | Circular polarization; 5dBi (NFC supported) |
| Read Range | Generally within 20 Meters (Based on environment and Tag) 30m (Impinj MR6 tag, size 70 x 15mm) 32m (Impinj M750 tag, size 70 x 15mm) 33m (Alien H3 Anti-Metal tag, size 130 x 42mm |
| Fastest Read Rate | 1300+ tags / sec |
| Physical Characteristics | |
| Dimensions | 177.0 x 80.2 x 14.8mm / 6.97 x 3.15 x 0.58in |
| Weight | 626g / 22.08oz. (device with battery) |
| Display | 6-inch, 2160 x 1080 |
| Touch Panel | Multi-touch panel, gloves and wet hands supported; |
| Battery | 6700mAh Built in 100mAh backup battery, supporting battery hot swap |

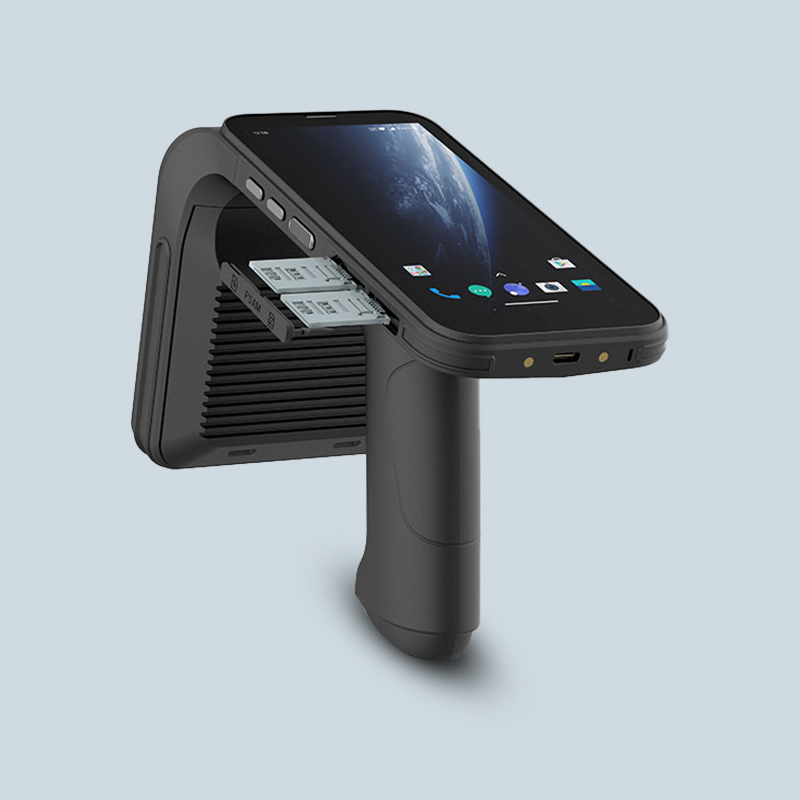

| Card slot | 2 slots for PSAM card (optional); 1 slot for Nano SIM card, 1 slot for Nano SIM or TF card |
| Interfaces | USB 2.0 Type-C, OTG, Type-C headphones supported |
| Audio | 2 microphones, 1 for noise cancellation; 1 speakers; 1 receiver |
| Notification | Sound, LED indicator, vibrator |
| Keypad | 1 power key, 2 scan keys, 1 user-defined key, 2 volume keys (+/-) |
| Sensor | Gravity sensor, proximity sensor, light sensor, geomagnetic sensor (optional), gyroscope (optional) |
| Performance | |
| CPU | Octa-core, 2.3GHz |
| RAM+ROM | 3GB + 32GB / 4GB +64GB (Optional) |
| Expansion | Supports up to 128GB Micro SD card |
| Operating System | Android 11 |
| Developing Environment | |
| SDK | Software Development Kit |
| Language | Java |
| Tool | Eclipse / Android Studio |
| User Environment | |
| Operating Temp. | -20 °C to 50 °C / 4 °F to 122 °F |
| Storage Temp. | -40 °C to 70 °C / -40 °F to 158 °F |
| Humidity | 5%RH to 95%RH (non condensing) |
| Drop Specification | Multiple 1.5m / 5.9ft. drops (at least 28 times) to the concrete across the operating temperature range |
| Tumble Specification | 1000 x 0.5m / 1.64 ft. falls at room temperature |
| Sealing | IP65 per IEC sealing specifications |
| ESD | ±15KV air discharge, ±8KV conductive discharge |
| Fingerprint (Optional) | |
| Sensor | TLK1NC02 |
| Sensing Area (mm) | 14.0 X 22.0 |
| Resolution (dpi) | 508dpi, 256 greylevel |
| Certifications | FIPS 201, FBI |
| Format Extraction | ISO19794, WSQ, ANSI 378, JPEG2000 |
| Fake Finger Detection | Support by SDK |
| Security | AES, DES key encryption of the host communication channel |
| Camera | |
| Front camera | 5MP |
| Rear camera | Rear 13MP Autofocus with flash |
| Camera | |
| Frequency | 13.56MHz |
| Protocol | ISO14443A / B, ISO15693, NFC-IP1, NFC-IP2 etc. |
| Chips | M1 card (S50, S70), CPU card, NFC tags etc. |
| Range | 2-4cm |
| Barcode Scanning (Optional) | |
| 2D Scanner | 2D Scanner CM60; Zebra: SE4710 |
| 1D Symbologies | UPC / EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS etc. |
| 2D Symbologies | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX) etc. |
