RFID Eco Max Metal Tag

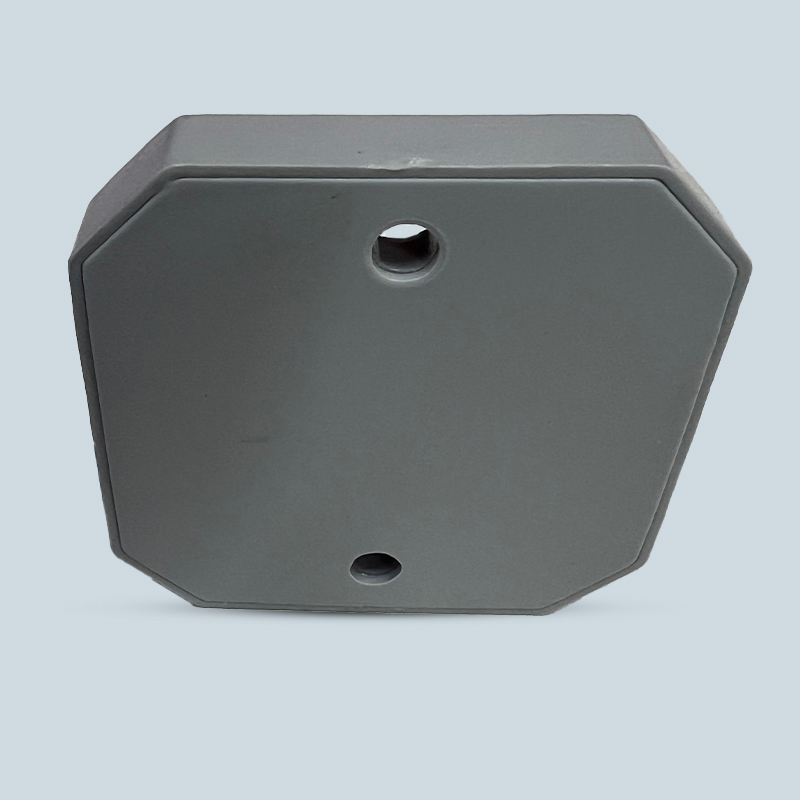

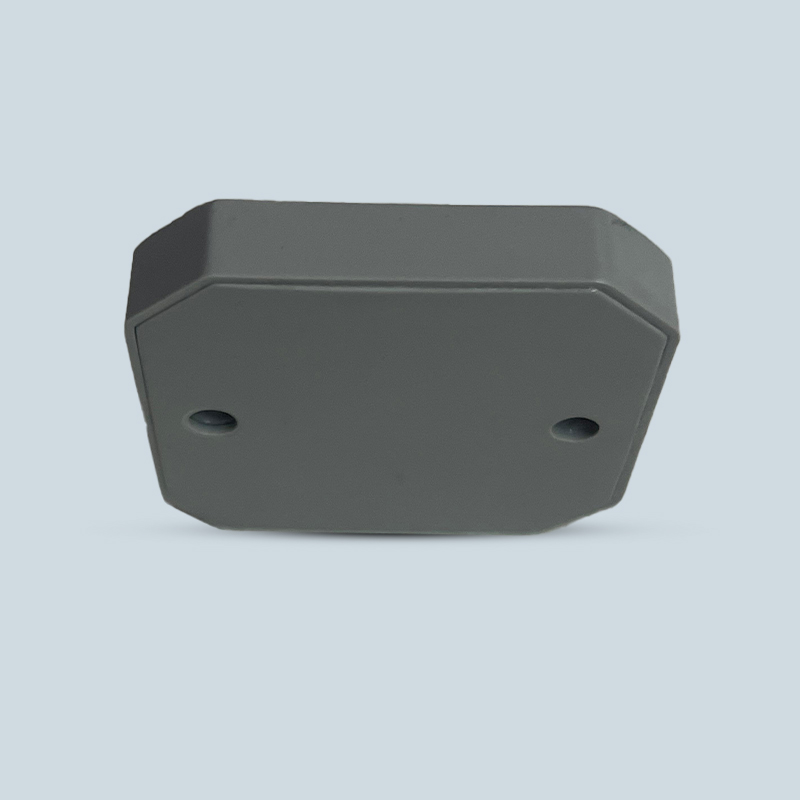

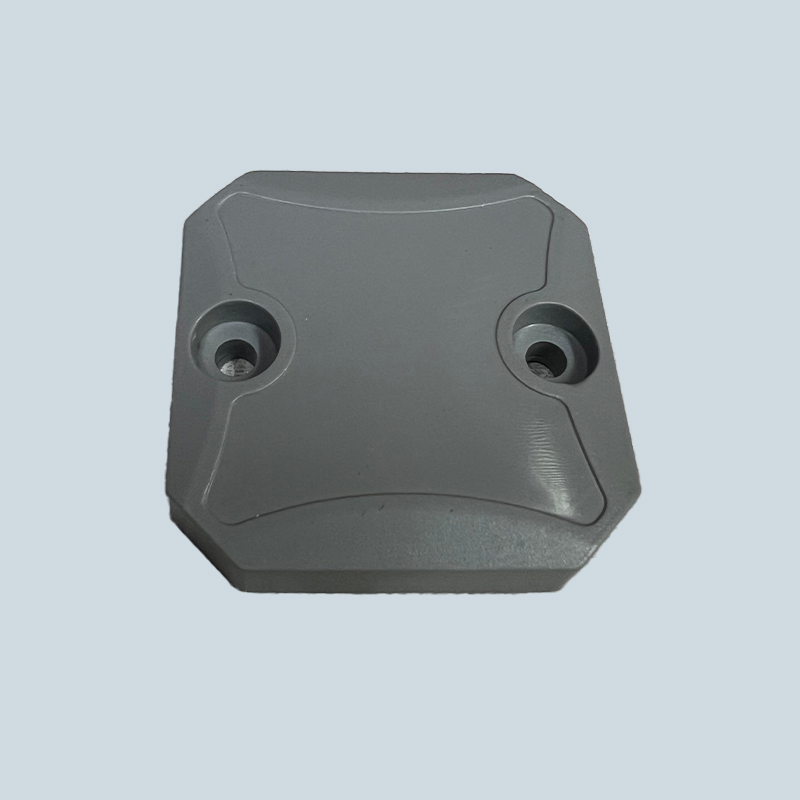

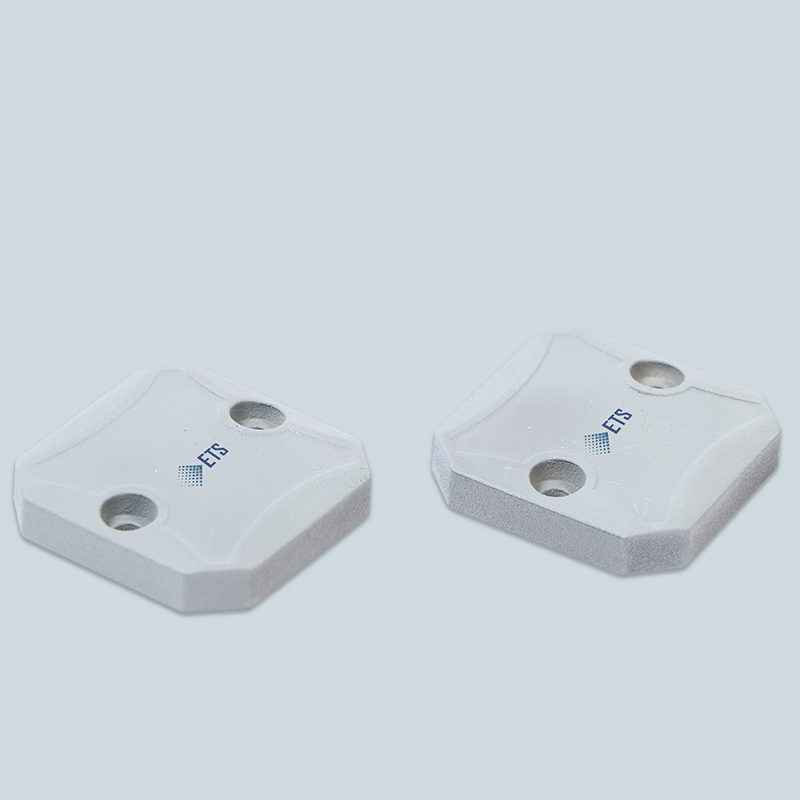

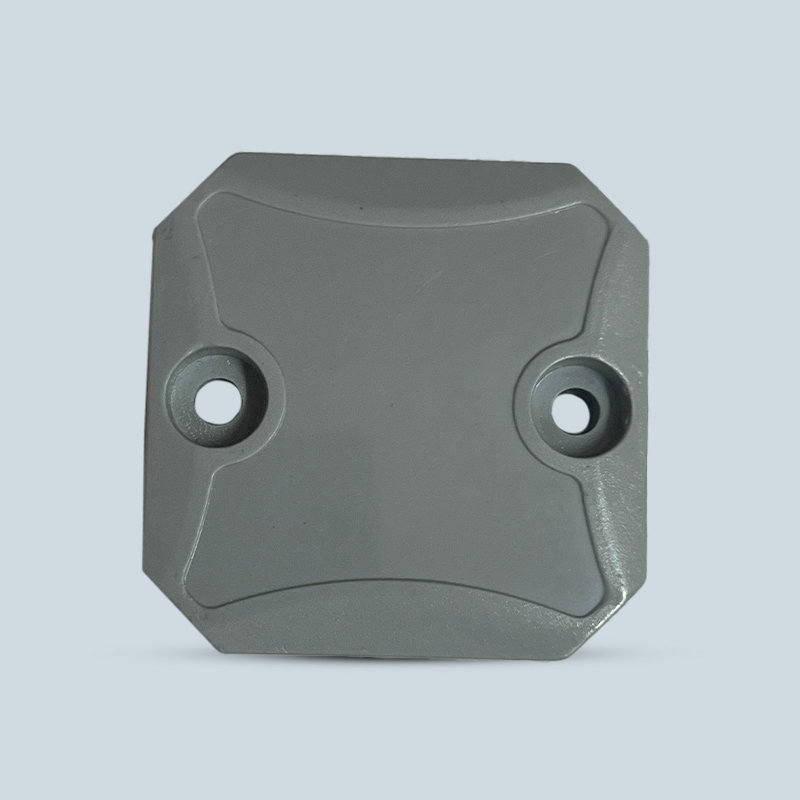

Model No: Eco Max

Description

UHF Eco Max tag is a highly rugged and durable EPC class 1 Gen2 passive RFID tag. It has a excellent and wide read range of Up to 10 meters when applied to metallic items which makes it one of the best suitable tag for asset identification along with other applications like warehouse management, container management, waste management and many more. It can be customize with different IC variants and memory area depending on requirement. This medium size tag provides unparalleled performance even in the most harshest environmental conditions. It can resist high temperature and is free from any damage caused due to water, chemical, shock, vibration etc.

There are multiple options to attach the tag on the asset that includes back side adhesive, screw or riveting. Customized laser printing can be done for logo, company name, text, tag ID etc.

Features

865 MHz-915 MHz

EPC Class 1 Gen2, ISO 18000-6C

Range Range: Upto 10 MT.

IP67

Mount on Metal

Chemical & Water Resistent

Shock & Vibration Resistent

Custom Laser Printing

Rivet /Adhesive

Application Areas

Warehousing

Oil and Gas

Waste Bin Mgt.

Asset Tracking

Production

Supply Chain

IT Assets

E-Commerce

Technical Specification

Electrical Characteristics
Communication ISO ProtocolISO/IEC 18000-6C, EPC Class – 1 Gen2
Operating Frequency band865 MHz or 915 MHz
Chip typeAlien Higgs-3 (Other upon request)
Memory organisationEPC–96 bits, extendible to 480bits
TID – 96 bits unalterable &unique
User memory – 512 bits
Access password – 32 bits
Kill password – 32 bits
Read RangeOn metal – Up to 10 m, Off metal – Up to 2m
Data retention50 Years
Endurance cycle100,000 Cycles
Physical Characteristics
Dimension50 x 50 x 10mm
Hole size5.0 mm
EncasementABS/PC
Weight21 gm
ColorGrey (other upon request)
Quality Testing100%
Environmental Characteristics
Ingress ProtectionIP67
Operating Temperature-25°C to +85°C
Storage Temperature-25°C to +85°C
ApplicationOn & Off metal both
Attachment/ mountingM5 Screw, rivet & VHB tape
Chemical Characteristics
Resistance to salt water exposureYes
Resistance to lubricant exposureYes
Resistance to IPA & thinnerYes
Additional Customization
EncodingYes
Logo/Text/Barcode printingYes
