Eco Track Systems

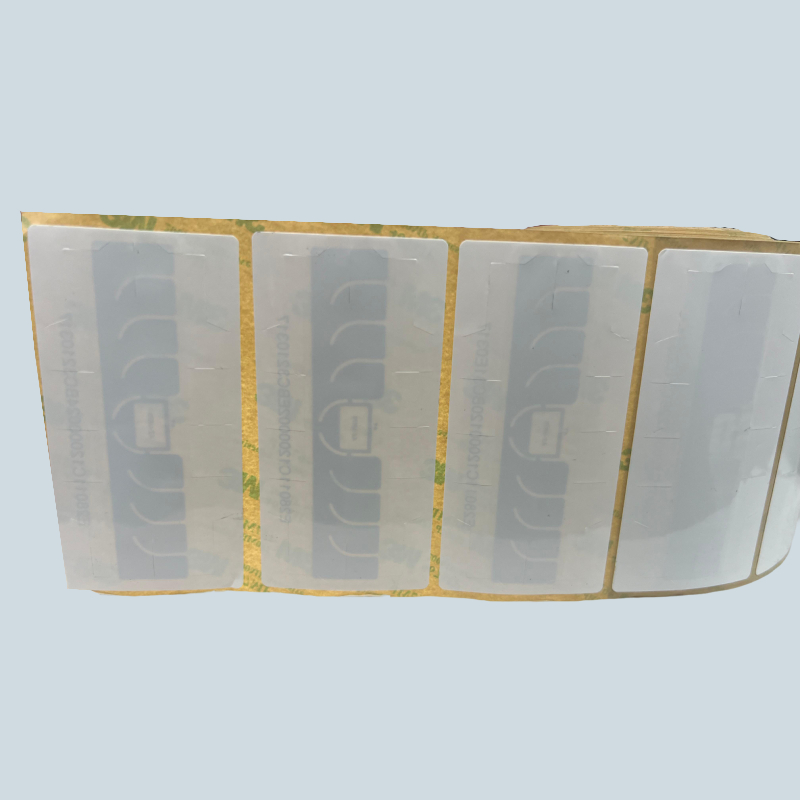

Tamper Evident Windshield Tag (100mm x 50mm)

Model No: ETS-RT 01 B

Description

ETS-RT 01 B is a highly powerful windshield tag built on Impinj RAIN® RFID chipset and embedded between 3 thick layers of PET material with Tag ID printed on the adhesive of the tag. The tag antenna adopts knife
line design and is fully tamper proof from all sides i.e. it cannot be used on any other vehicle to breach the security access of the campus. With a read range of Up to 12-15 meters, this tag is an idle fit for applications related to Vehicle Tracking and Gate Automation in residential societies, manufacturing, parking lots, corporate offices, toll plaza etc. The uniquely designed antenna ensures seamless tag reading even at high speed and provides excellent accuracy for 4 Wheller and heavy fleets. We use highly quality 3M adhesive which resists peeling even in extreme environment conditions. The user memory of the tag is protected by password and can store encrypted user data. The tag can also be personalized by printing customized logo, barcode, QR, any other content as per the requirement of the project. When the tag is pasted on the windshield from inside the vehicle, the printed part is visible from outside just like FASTAG.

Features

3M Adhesive

Range 15 MT.

Impinj RAIN Chip

EPC Class 1 Gen2 ISO 18000-6B,C

Fully Tamper Proof

Pre-Printed Tag

Bright White Thick PET, Glossy Look

Custom Adhesive Side Print

UV Protected Chip

Chemical Proof

Application Areas

Weighbridge

Residential Society

Parking Lots

Manufacturing

Coal Mines

Cement Plants

Malls,Hotel

Malls, Hotels

Technical Specification

Model NumberETS-RT 01 B
ApplicationWindshield of vehicles and fleets
Read RangeUp To 15 meters* (tested with 12 dBi Reader/Antenna)
Antenna Size93 mm x 19 mm
Over all Tag Size100 mm x 50 mm
Tamper proofYes. From all side
Write RangeUp to 6 meters*
FrequencyEU: 865-868MHz, US: 902-928 MHz
StandardISO/IEC 18000-6C EPC Class 1 Gen2
Chip TypeImpinj RAIN® RFID
Write endurance1,00,000 cycles
Memory128 bits EPC memory, 512 bits user memory and 96 bit TID
Working ModeRead and Write
Data Retention10 years
Anti-collisionYes
Base MaterialBright White Thick PET, Glossy Look
Antenna MaterialAluminum Etched
Operating Temp.-25 degree Celsius to +80 degree Celsius
Operating humidity95% condensing

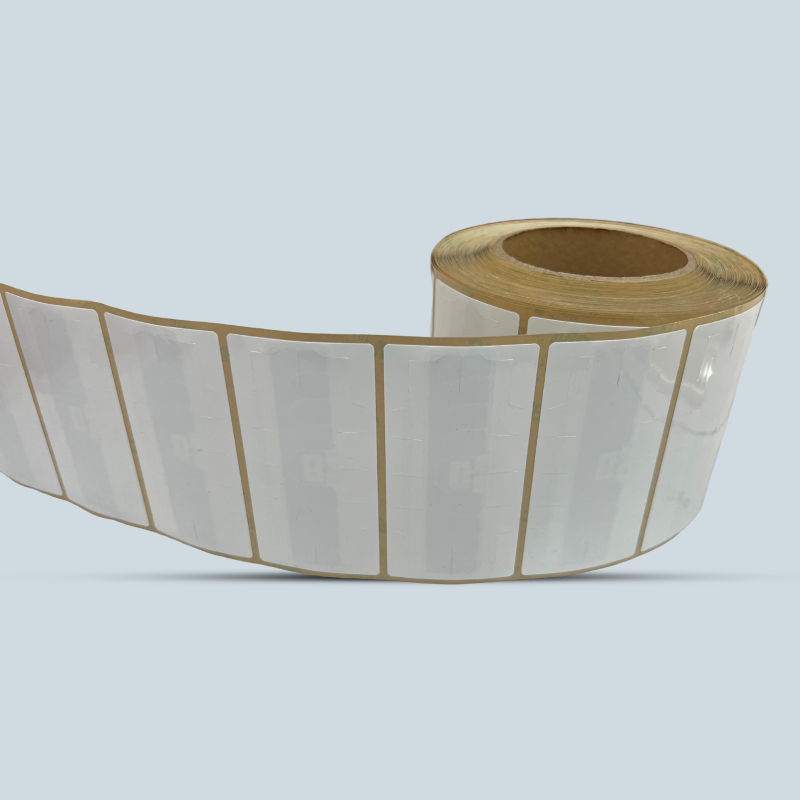

Packaging1000 pc / roll
CharacteristicsContact less Chip inside. Waterproof, dustproof and chemical proof
