Eco Track Systems

Tamper Proof Jewellery Tag

Model No: ETS-RT 06 C

Description

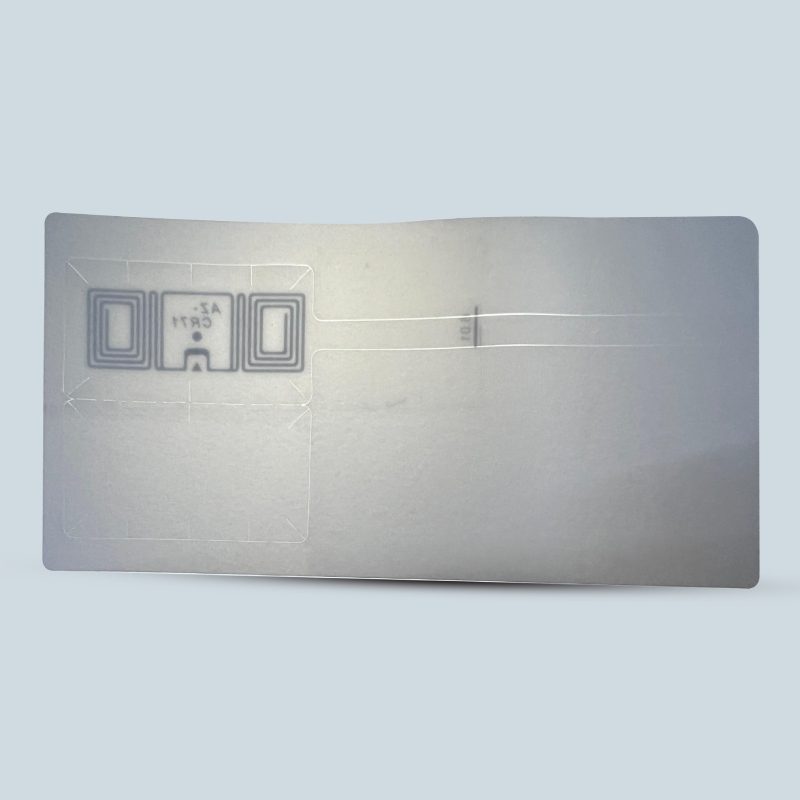

ETS-RT 06 C is a one time use tamper proof  RFID UHF Jewellery Tag which works on 865 – 928 MHz frequency and fully compliant with ISO/IEC 18000-6C, EPC Global C1 G2 standards. The antenna and chip are embedded in high grade PET material to make it durable and elegant. The tag is available in Glossy / Matt finish. Combined with RFID reader, the jewellery tag delivers exceptional reliability in a smaller form factor at competitive pricing. Its wide read range of up to 4 mt. and accurate performance makes it one of the best tags for tracking and identification of high value items on shelf like watches, necklace, rings, earrings, bracelets etc.

The tag is fully tamper proof from all sides i.e. once it is applied on any item it is impossible to re-use the same tag on another item. The strategically placed slits on the tag surface tampers the antenna and its tail.

We use high quality adhesive to ensures that the glue does not leaves even the slightest imprint on the item to which it is attached.

Features

UHF

EPC Class 1 Gen2, ISO 18000-6B,C

Tamper Proof

Range 4 MT.

Thick PET Material

Water resistent

Chemical Proof

Glossy Look

Custom Printing

Application Areas

Watches

Earrings

Bracelets

Jewellery Retail Workshop

Rings

Wallets

Technical Specification

Size70mm x 36mm
ChipMonza M730 / Alien H9 / R6-P
FrequencyUHF 865-868MHz, 902-928 MHZ
ProtocolISO/IEC 18000-6C, EPC Global C1G2
Dimensions70 mm x 36 mm
Read distance0-4 mt (dependent on reader and environment)
MemoryDepends on Chip used
AntennaAluminum
Working ModeRead and Write
Base MaterialPET (Available in Glossy in Matt Finish)
Data Retention10 years
Programing cycle100000 times
Operating Temp-25°C to +70°C
Storage Temp.-20°C to +65°C
AdhesiveHigh grade industrial adhesive
Weight per tag1 gram
ColourWhite
Protection GradeResistant to Chemical, Water exposure
Custom PrintingYes. Can print logo, text, barcode etc
