Eco Track Systems

RFID Tamper Proof Windshield Tag

Model No: ETS-RT 01

Description

ETS-RT 01 is a specially designed tag meant for application on windshields of the vehicles. With a read range of up to 12 meters, it is one of the most widely used tag for projects related to vehicle access control and tracking at residential societies, parking lots, weighbridge, malls, manufacturing etc. The unique tag design works best on 4 wheelers as well as heavy fleets like truck, bus etc.

The tag is fully tamper evident in nature from all sides which means that it cannot be used on another vehicle to breach the security access. Once it is pasted on a windshield, the strategically made slits makes it practically impossible for anyone to remove it without breaking the inbuilt antenna chip. This tag comes with 3M adhesive on one side which resists peeling even in the harshest environment.

We use Alien 9954 Inlay to embed the chip & inlay between the three thin layers of the tag. Its excellent read range and easy application allows vehicles and fleets to be tracked and managed even high speed.

This tag can be fully customized to print logo, text, barcode, QR code, encoding etc. depending on the requirement of the project. The material used in printing is of high quality and resist fading and cracking. Eco Track Systems is one of the leading manufacturer and supplier of RFID Windshield tags in India. These high-quality tags are designed and crafted with great accuracy to provide comparatively high and long range which is much required in Vehicle tracking related applications. With more than 2 million active users of this tag across the globe, ETS-RT 01 is one of the most hot selling and premium tag supplied by ETS.

Features

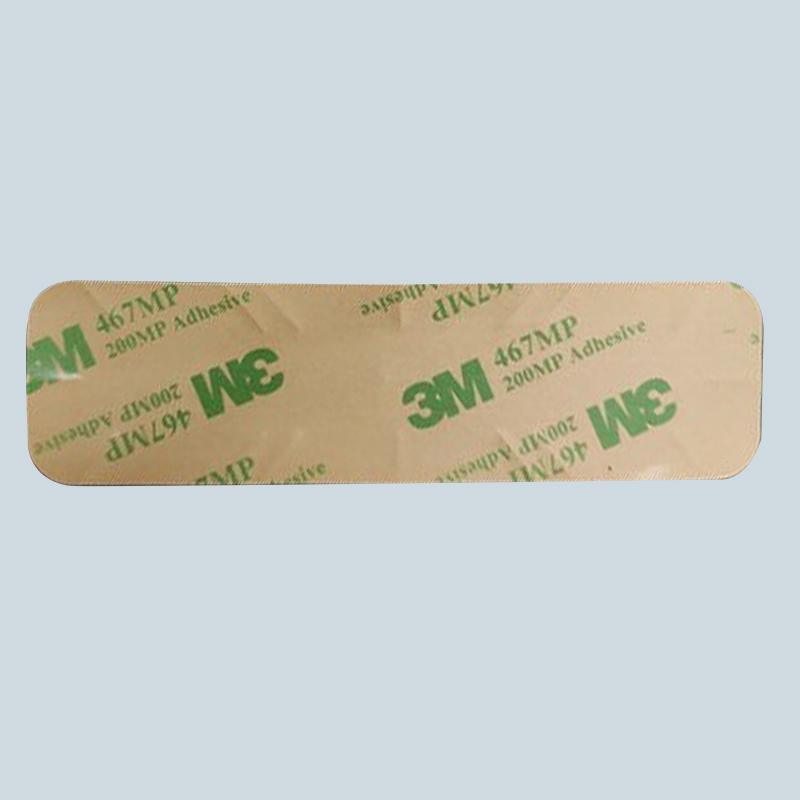

3M Adhesive

Tamper Evident

Chemical Proof

Water resistent

PET Material

Thick PET Material 3 Layered

Glossy Look

Glossy Sleek Look

Range 12 MT.

Custom Printing

EPC Class 1 Gen2 ISO 18000-6B,C

Application Areas

Weighbridge

Residential Society

Parking Lots

Manufacturing

Coal Mines

Cement Plants

Malls,Hotel

Malls, Hotels

Technical Specification

Model NumberETS-RT 01
ApplicationWindshield of vehicles and fleets
Read RangeUp To 12 meters*
Tamper proofYes. From all side
Write RangeUp to 5 meters*
FrequencyEU: 865-868MHz, US: 902-928 MHz
StandardISO/IEC 18000-6C (EPC Class 1 Gen2)
Chip TypeAlien Higgs 9/10
Write endurance2,00,000 cycles
Memory32 bits TID, 96 bits EPC number, 512 bits user memory
Working ModeRead and Write
Data Retention10 years
Anti-collisionYes
Base MaterialThick PET, Glossy Look
Antenna MaterialAluminum Etched
Operating Temp.-25 degree Celsius to +80 degree Celsius
Operating humidity95% condensing
Packaging2500 pc / roll (can be customized)
Weight per piece1.60 grams
CharacteristicsContact less Chip inside. Waterproof, dustproof and chemical proof
ColourWhite glossy with optional print
Dimension100 mm x 25 mm (Thickness 400 microns*)
Ingress ProtectionIP65
