Eco Track Systems

RFID UHF Jewellery Tag

Model No: ETS-RT 06 A

Description

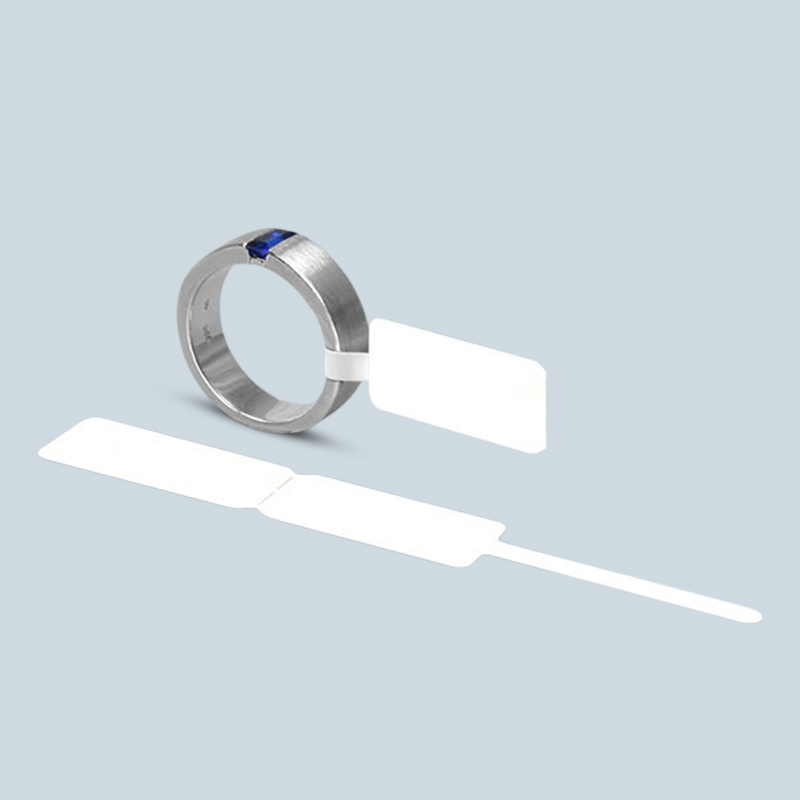

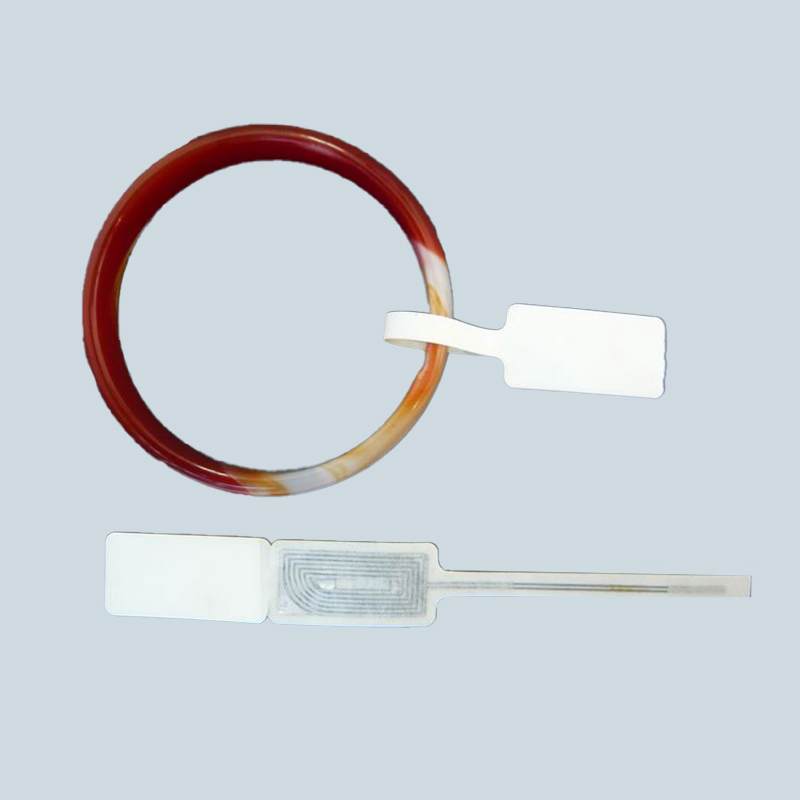

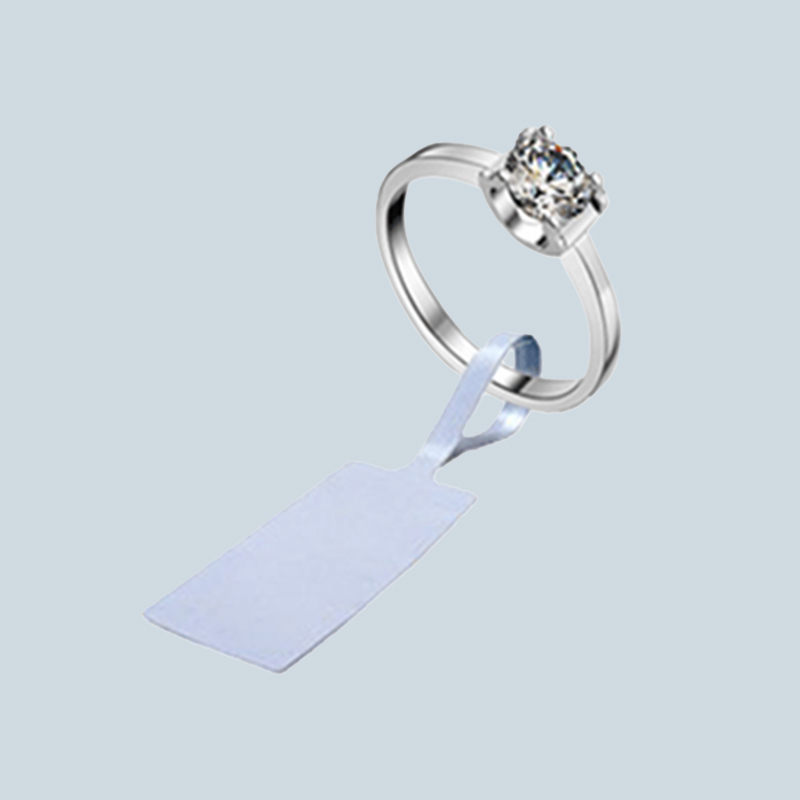

ETS-RT 06 A is a uniquely designed high performance UHF tag meant for application in Jewellery items. It works on global UHF frequency 865 – 928 MHz and fully compliant with ISO/IEC 18000-6C, EPC Global C1G2 standards. Its wide read range of up to 4 mt and accurate performance makes it one of the best tags for tracking and identification of high value items on shelf like watches, necklace, rings, earrings, bracelets etc.

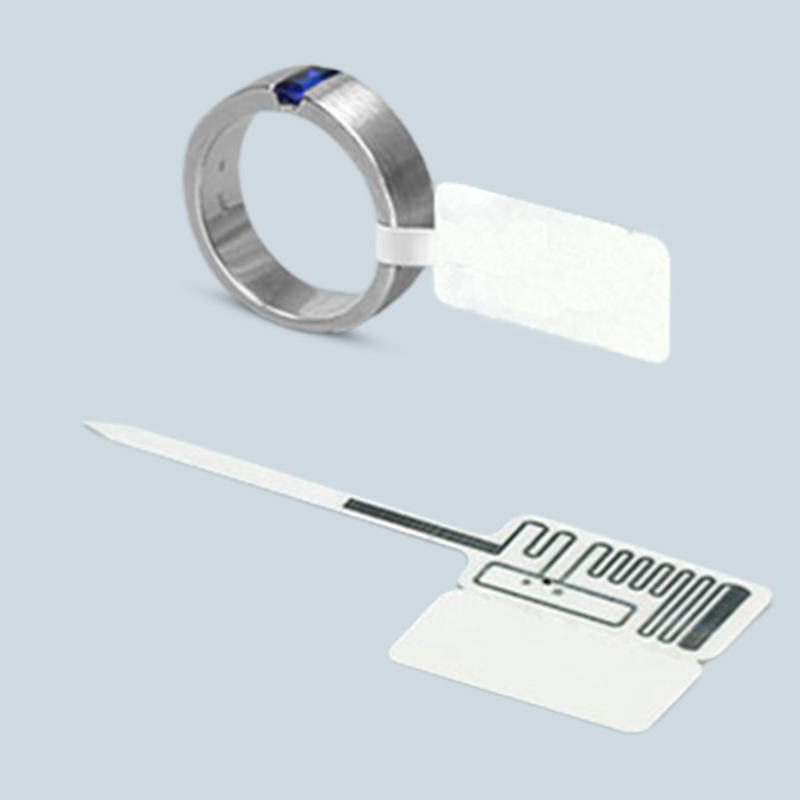

These tags are strategically designed to be hung on items and meant for one time use only. The antenna and chip are embedded in high grade PET material to make it durable and look elegant with a glossy shine on its surface. Combined with RFID reader, the jewellery tag delivers exceptional reliability in a smaller form factor at competitive pricing.

Features

UHF

EPC Class 1 Gen2, ISO 18000-6B,C

Range 4 MT.

Thick PET Material

Water resistant

Chemical Proof

Glossy Look

Custom Printing

Application Areas

Watches

Earrings

Bracelets

Jewellery Retail Workshop

Rings

Wallets

Technical Specification

Parameters70 mm x 36 mm96 mm x 23 mm
ChipMonza M730 / Alien H9 / R6-PNXP UCODE 9/UCODE 9xe
FrequencyUHF 865-868MHz, 902-928 MHZ
ProtocolISO/IEC 18000-6C, EPC Global C1G2
Dimensions70 mm x 36 mm
Read distance0-4 mt (dependent on reader and environment)
MemoryDepends on Chip used
AntennaAluminum
Working ModeRead and Write
Base MaterialPET (Available in Glossy in Matt Finish)
Data Retention10 years
Programing cycle100000 times
Operating Temp-25°C to +70°C
Storage Temp.-20°C to +65°C
AdhesiveHigh grade industrial adhesive
Weight per tag1 gram1.2 gram
ColourWhite
Protection GradeResistant to Chemical, Water exposure
Custom PrintingYes. Can print logo, text, barcode etc
