Eco Track Systems

RFID UHF Clothes Hang Tag

Model No: ETS-RT 07A

Description

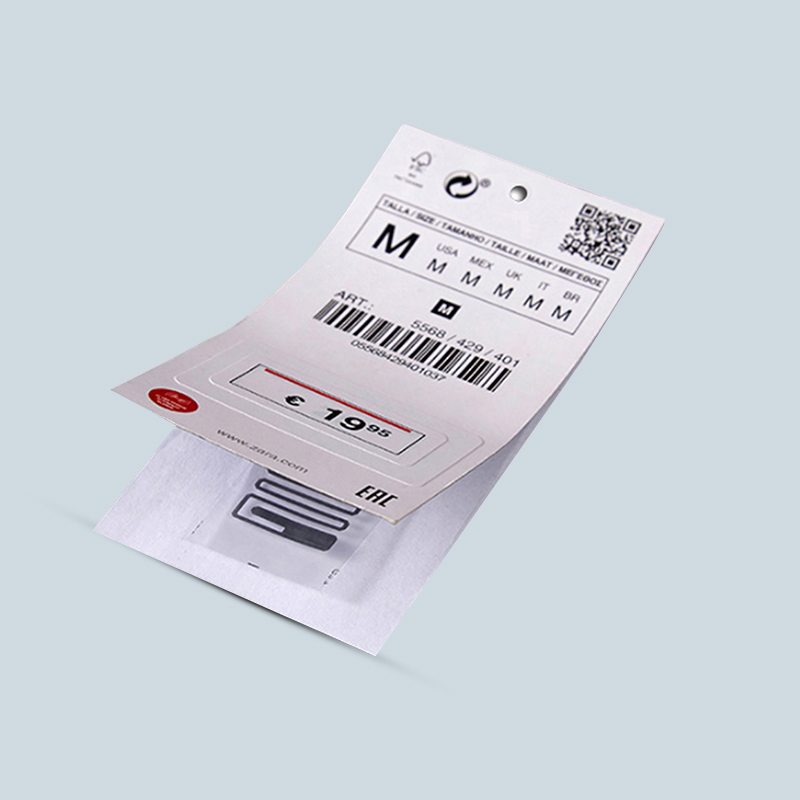

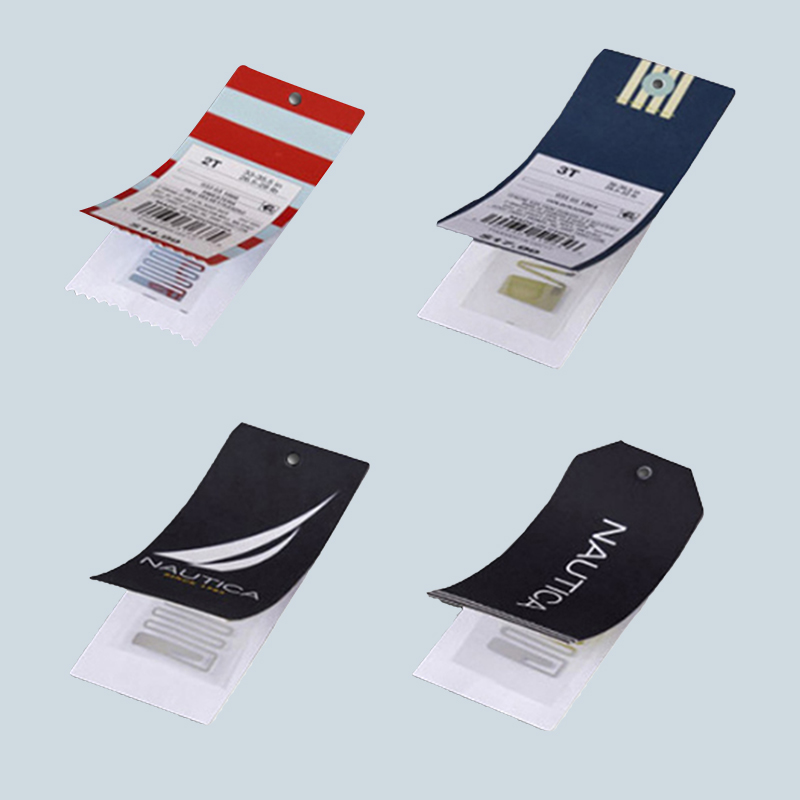

ETS-RT 07 A tags are specially meant for apparel industry to identify and manage the garments / clothes at various levels of production and at the retail level. The tag includes RFID UHF inlay embedded between
2 thick layers of paper with a hole at top side to hang the tag on the clothes. The tag generally contains details related to the particular garment like its size, price, model, make, serial number, date of manufacturing, discounts offered, available inventory in store etc. Nylon/platic threads are used for attaching the tags to the clothes.

At retail / store level, RFID Handheld readers are used for taking daily inventory and for searching misplaced item which in turn saves a lot of time compared to manual processes. RFID fitted clothes provide automated billing and better security checks at retail level.

Application Areas

Clothes Retail

Clothes Manufacturing

Laundry Tracking

Laundry Rentals

Garment Exporters

Technical Specification

Physical Specification
Face StockCoated Paper
Label Sizes79.0 x 38.1 mm, 3.11 x 1.5 in
Weight0.5 gm
Delivery FormatSingle Pieces
RF Specification
Mode of OperationPassive
Device TypeClass 1 Gen 2 Passive UHF RFID transponder
Air Interface ProtocolEPC Global Class 1 Gen 2 ISO 18000-6C
Operational FrequencyGlobal 860-960 MHz
IC Type*NXP UCODE 8
Memory ConfigurationEPC Size 128 bit, 96 bit TID with 48 bit Unique serial number
Write Cycle Endurance100,000
Data RetentionUpto 20 years
Read Range (In Meters)ETSI : Free Air 7 m / 22.96 ft
FCC : Free Air 10 m / 32.80 ft
Environmental Resistance
Operating Temperature-20°C to +70°C / -4°F to +158°F
Recommended Application
Temperature
+10°C to +38°C
Withstands Exposure To-20°C to +70°C / -4°F to +158°F
Peak Temperature+70°C / +158°F
Ideal Storage Condition+23°C / 50% RH
Expected LifetimeYears in normal operating conditions
