Eco Track Systems

RFID UHF Cards

Model No: ETS-RC 02

Description

ETS-RC 02 UHF Cards are long distance RFID cards that work on Global 865 - 928 MHz frequency standards and are fully compliant with EPC Class1 Gen2 ISO 18000 – 6C protocol. The chip is embedded within 3 layers of high-grade PVC and has EPC memory allocation of 96/128 bits and user memory of 512 bits.

The read range of these cards can be anywhere between 0-10 mt depending on reader and environment conditions. These cards are most widely used in applications like attendance management in school / college, access control, vehicle and gate automation, micro payments, loyalty cards etc. Each and every card produced or supplied by us is first individually tested to ensure highest quality standards. The cards have a smooth scratch free surface and are double coated with high quality

films to ensure shiny mirror like effect. Each card is packed individually in a plastic cover to ensure getting scratches in transit.

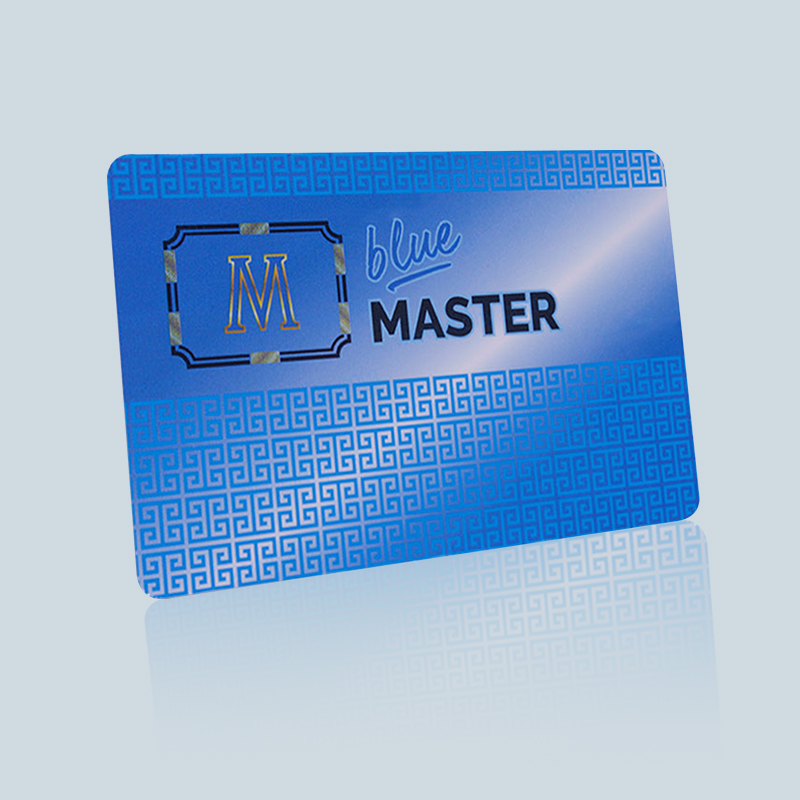

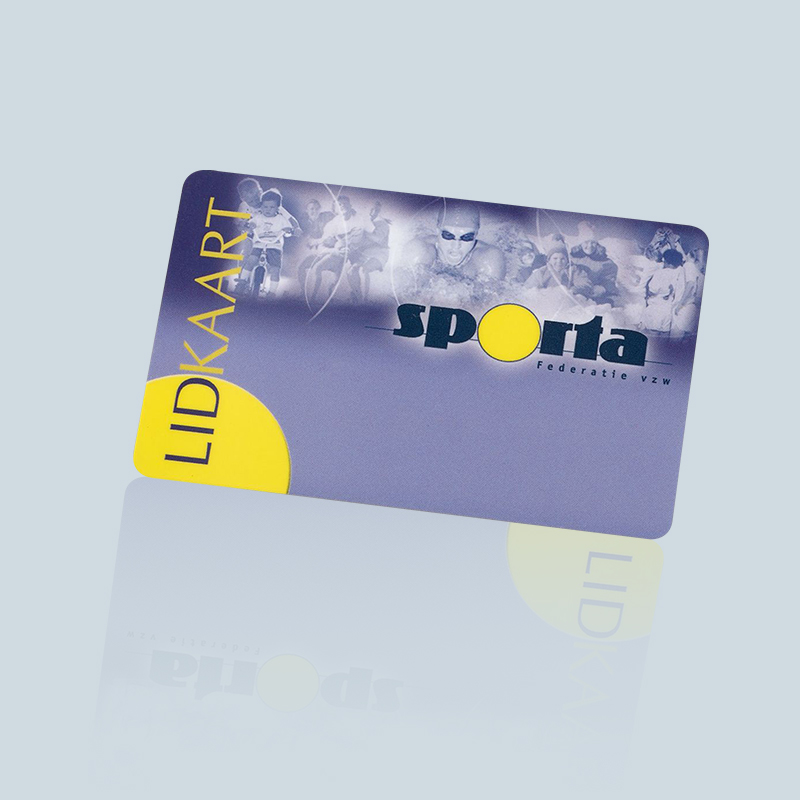

We offer fully customized printing on both sides of the card which is done using most premium segment card printers in the industry. We can use different background themes like gold / silver sparkling look, matt finish, foil stamping etc. Printing may include below details:

Features

UHF

EPC Class 1 Gen 2 ISO 18000-6B,C

Range Up to 10 MT.

PET Material

High Grade PVC

Water resistent

Chemical Resistant

Customized Printing

Scratch Proof Surface

Application Areas

Attendance Management

Asset Tracking

Access Control

Library Card

Production

Corporate Office

Technical Specification

Model NumberETS-RC 02
Frequency865-868MHz, 902-928 MHZ
Chip Type (choose)Alien (9662 Chip
ComplianceEPC Class1 Gen2 ISO 18000 – 6C
Working ModeRead and Write
Read and Write RangeDepends on chip and reader
Data retention10 years
Anti-CollisionYes
Base MaterialHigh Grade
Operating Temperature-25 to +70 degree Celsius
Storage Temperature-25 to +50 degree Celsius
Operating Humidity<= 80%
Package200 Qty in 1 box
Weight1.5 kg per box
PrintingYes available for both side
LaminationYes. Both side
Dimensions86mm x 54mm x 0.78mm
