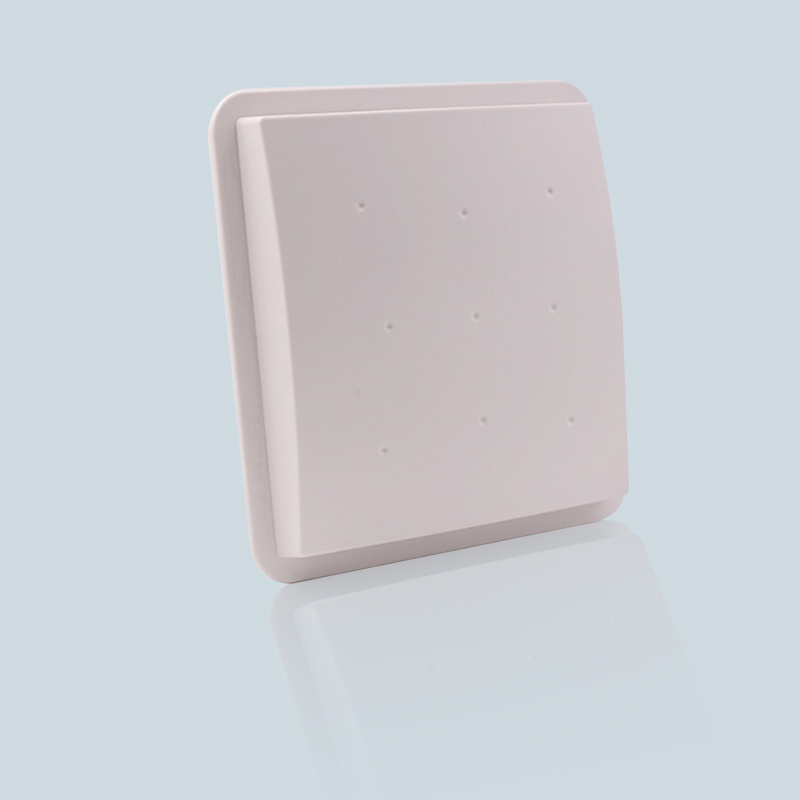

RFID UHF 8dBi Circular Antenna
Model No: ETS-RA 02
Description
ETS-RA 02 is an 8 dBi circular polarized antenna that is small and compact in nature. It works on global UHF frequency (865-868MHz, 902-928 MHz) standards and fully supports ISO18000-6B, EPC Class 1 Gen2 (ISO 18000 - 6C) tag protocol. It is the latest addition to the high-performance RFID antenna lineup and is the only UHF RFID antenna available to the market that offers no-compromise performance in a small package. In effect this antenna provides performance one would expect of a much larger antenna. The antenna is not only mechanically robust but is less likely to be exposed to excessive damage by virtue of its reduced size.
| Model | ETS-RA 02 |
| Frequency range (MHz) | Global 865 – 868 MHz and 902 - 928MHz |
| Polarization | Circular |
| Gain | 8 dBi |
| Half-power beam width (°) | Horizontal :65 and Vertical :65 |
| Front-to-back ratio (dB) | ≥ 20 |
| Impedance (Ω) | 50 |
| VSWR | ≤ 1.4 |
| Maximum input power (W) | 100 |
| Lightning protection | DC Ground |

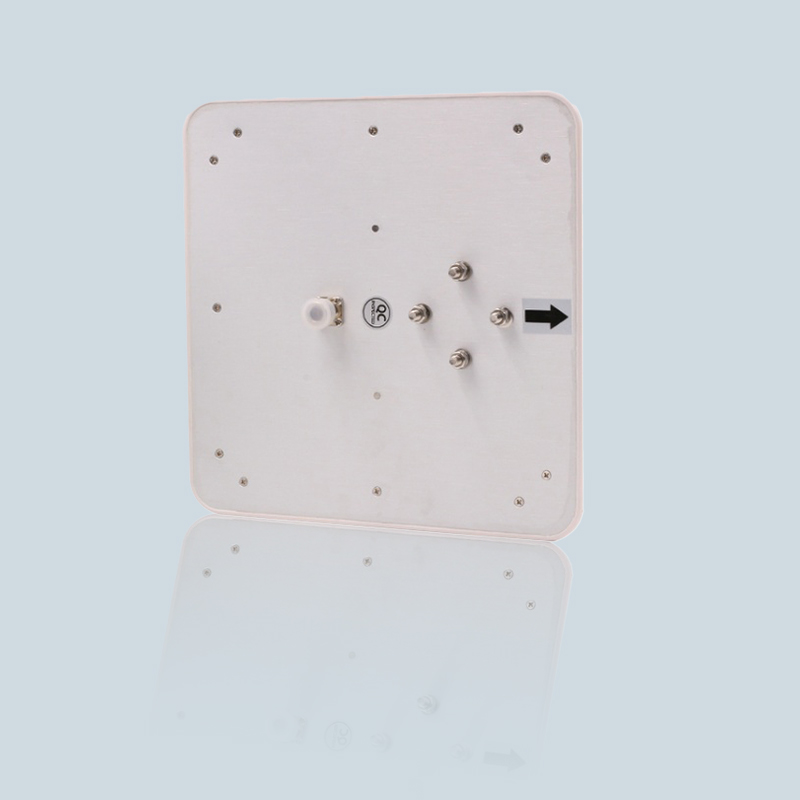

| Connector | N-female |
| Connector Position | Bottom |
| Size | 260 x 260 x 45 mm |
| Packing size | 300 x 290 x 100 mm |
| Antenna weight | 1.2 kg |
| Packing weight | 1.35 kg |
| Wind loading area (m2) | ≤ 0.2 |
| Rated wind velocity(m/s) | 60 |
| Reflector material | Aluminum |
| Radome material | UV or ABS |
| Radome color | White |
| Operating temperature(°C) | -40°C to +70°C |
| Mounting hardware | Ф40 - 50 mm |
