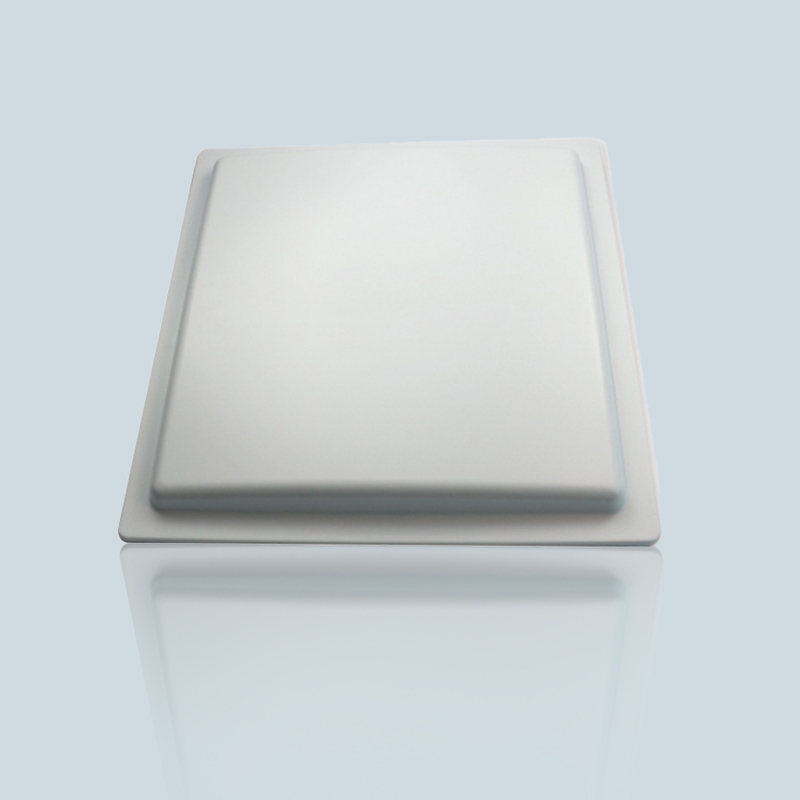

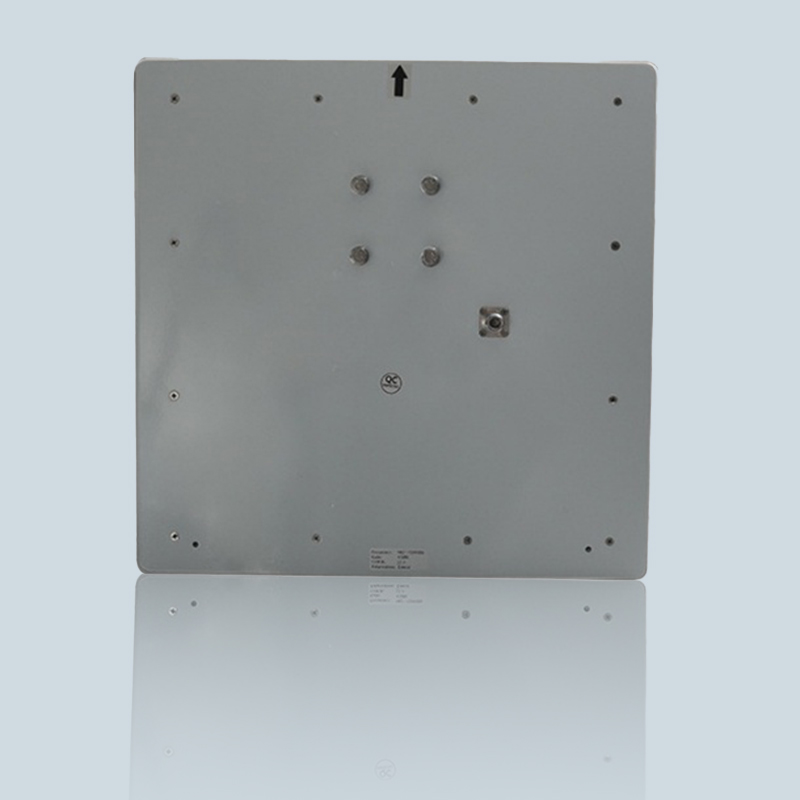

RFID UHF 12dBi Circular Antenna
Model No: ETS-RA 01
Description

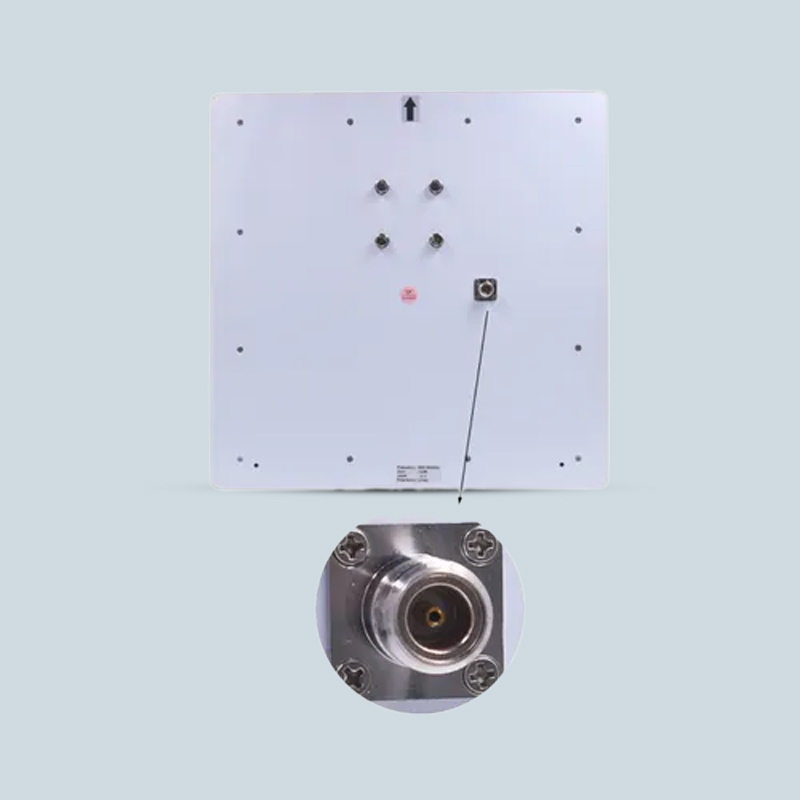

ETS-RA 01 is a 12 dBi Circular UHF antenna that offers maximum performance and flexibility required to meet diverse environmental conditions. It is most widely used in warehousing, parking systems, gate automation, logistics and industrial production automation applications. It provides an N-Type Female connector and offers a low axial ratio that delivers a more uniform gain for superior performance. The antenna offers an IP54 protection rating. It works on global UHF frequency (865-868MHz, 902-928 MHz) standards and fully supports ISO18000-6B, EPC Class 1 Gen2 (ISO 18000 - 6C) tag protocol.

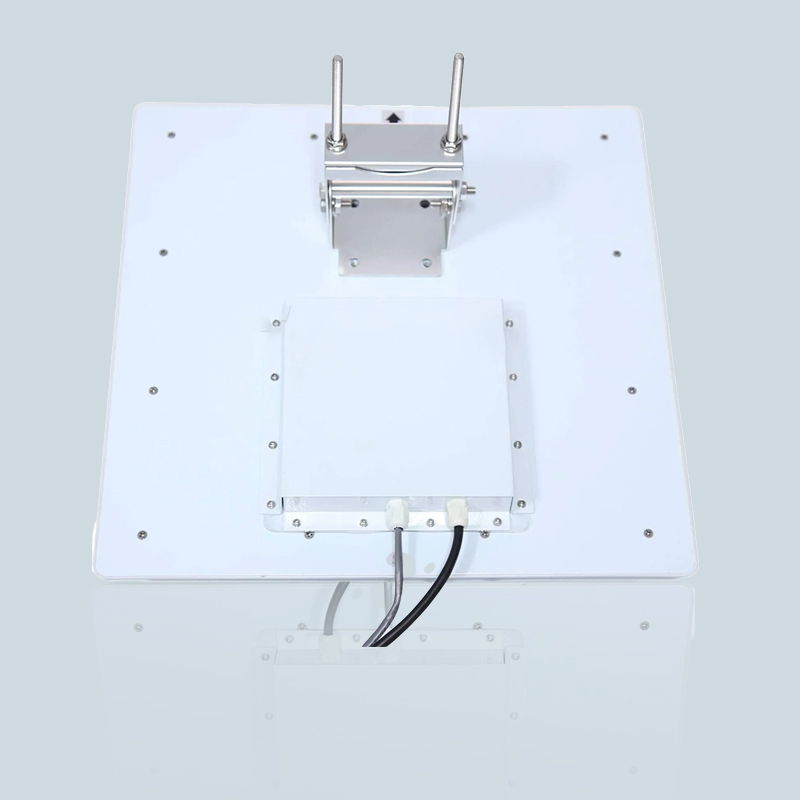

It also includes heavy duty pole mount bracket that allows up or down tilt adjustment and the stainless steel hardware assures a long service life. The antenna can be wall or pole mounted
| Model | ETS-RA 01 |
| Frequency range (MHz) | Global 865 – 868 MHz and 902 - 928MHz |
| Polarization | Circular |
| Gain (dBi) | 12 dBi |
| Half-power beam width (°) | Horizontal :40 and Vertical :40 |
| Front-to-back ratio (dB) | ≥ 25 |
| Impedance (Ω) | 50 |
| VSWR | ≤ 1.3 |
| Maximum input power (W) | 50 |
| Lightning protection | DC Ground |
| Connector | N-female |
| Connector Position | Bottom |
| Size | 450mm x 450mm x 40mm |
| Packing Size | 480mm x 480mm x 55mm |
| Antenna Weight | 2.5 kg |
| Compliance | ROHS |
| IP Rating | IP 54 |
| Packing Weight | 4 kg |
| Wind loading area | ≤ 0.2 |
| Rated wind velocity (m/s) | 60 |
| Reflector material | Aluminum |
| Radome material | ABS |
| Radome color | White |
| Operating temperature(°C) | -40°C to +70°C |
