RFID Tyre Tag

Model No: ETS-RT 51

Description

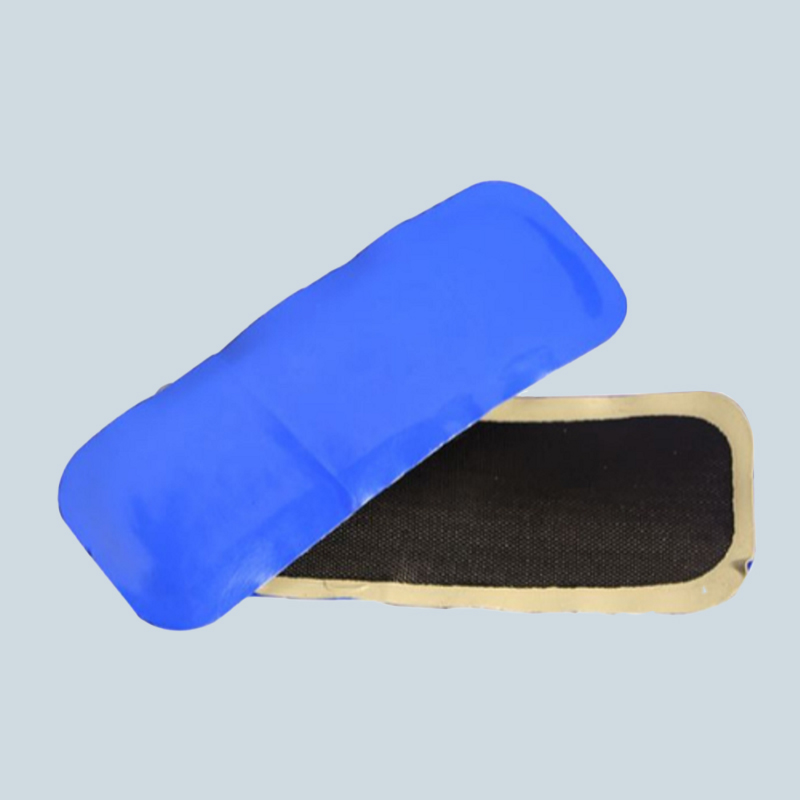

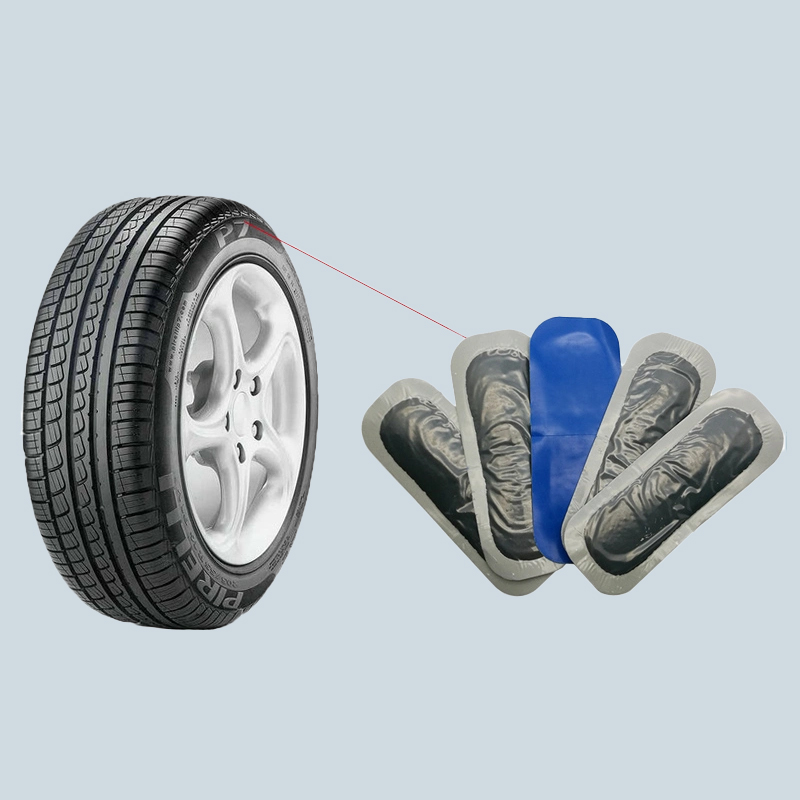

ETS-RT 51 is a highly rugged tag meant for application on tyres of 2-wheeler, 4 wheelers, trucks, buses etc. The uniquely designed antenna can easily survive in high temperature conditions and work throughout the operational life span of the tyre. The tag is ISO/IEC 18000-6C compliant and designed on UHF 865 – 928 MHz UHF frequency. As the name suggest, it is used for tracking and identification of tyres at various levels that include manufacturing, operation, trading etc. We use high grade vulcanized rubber for long life and durability of the tag.

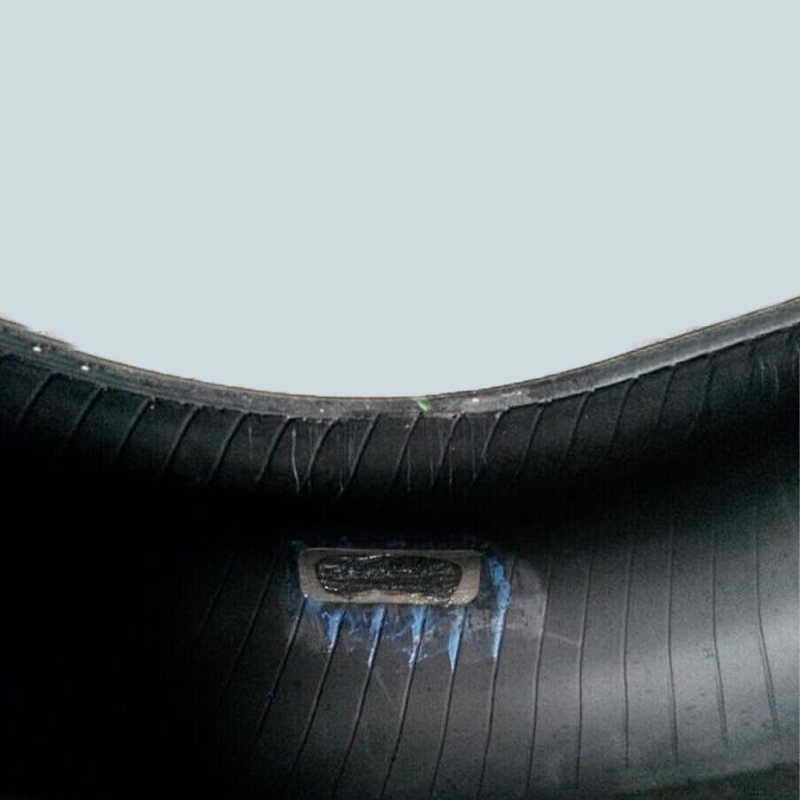

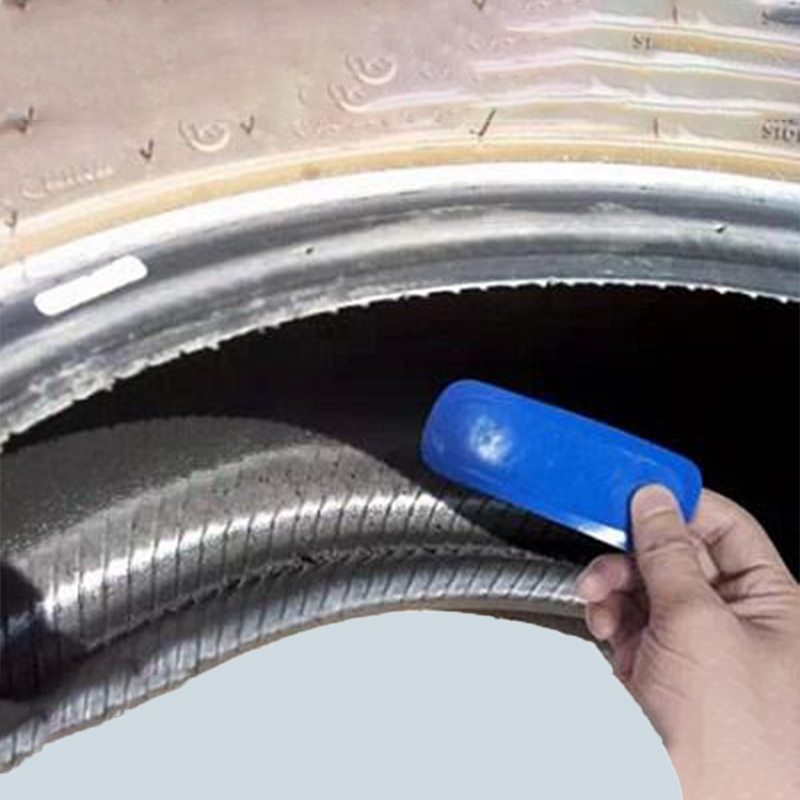

The tag is attached to the inner inside area of the tyre using hot cold vulcanization process which makes it tamper proof and impossible for anyone to remove or replace it during the usage. These tags are used in combination with RFID Handheld and fixed readers for a variety of applications at production, retail and end use.

Features

865MHz-928 MHz

EPC Gen1 ISO 18000-6C

Range: Upto 4 MT*

Water Resistent

Chemical Proof

IP68

Extremely Rugged

100000 times Writable

10 Years Warranty

Application Areas

Transportation

Logistics Companies

Tyre Manufacturer

Tyre Retail Shop

Vehicle Rental Companies

Technical Specification

Air Interface ProtocolISO/IEC 18000-6C, EPC Global C1G2
Operational Frequency865-868 MHz or 902-928 MHz
ChipAlien Higgs-3
Memory ConfigurationEPC-96 bits, extendible to 480bits
TID-96 bits unalterable unique
User memory-512 bits
Access password-32 bits
Kill password-32 bits
Read Range3-4 m when placed on tire It is strictly recommended to test with tire only
Dimensions85 x 35 x 3 +- 0.3 mm
ColourBlack and grey
Weight5.6 g
EncasementRubber
Quality Assurance100% reader tested
Operating temperature-40degreeC to +85degreeC
Storage temperature-40degreeC to +95degreeC
Moulding pressureUp to 5000kPa
Ingess protectionIP68
AttachmentSelf Adhesive
Applicable surfaceAll types of tires
