Eco Track Systems

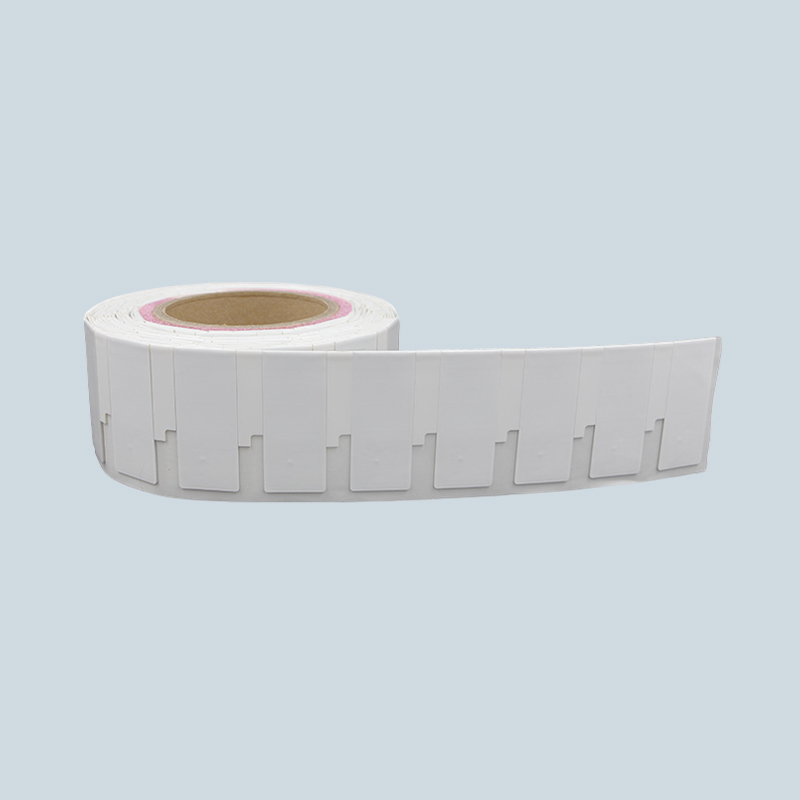

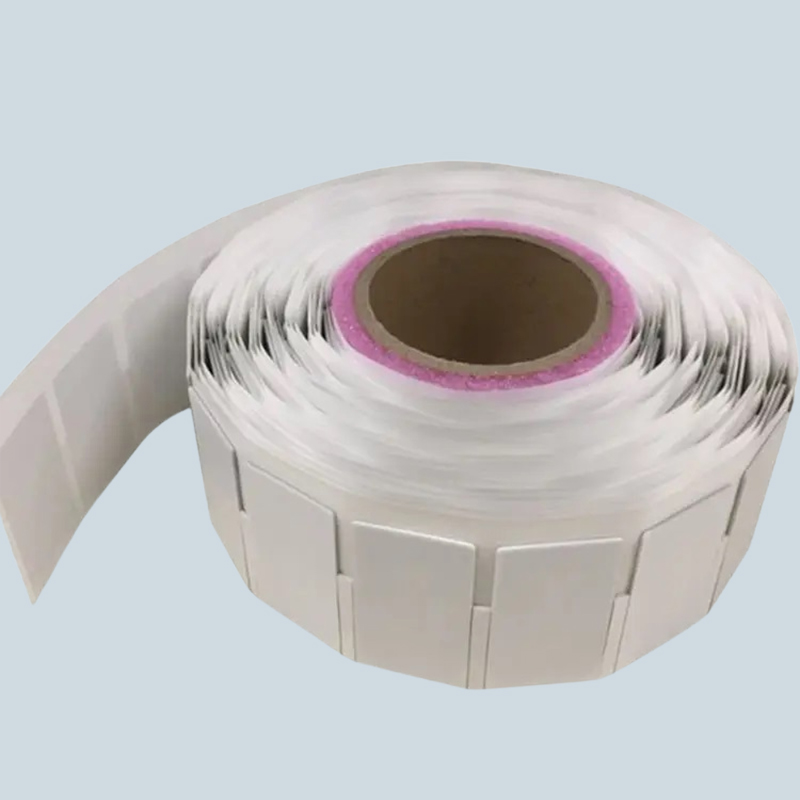

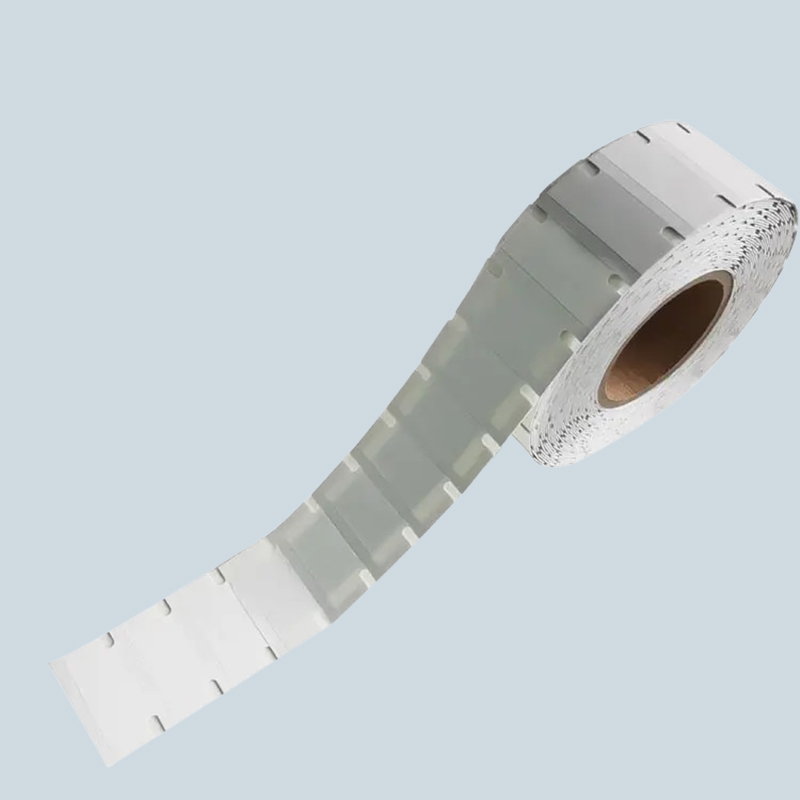

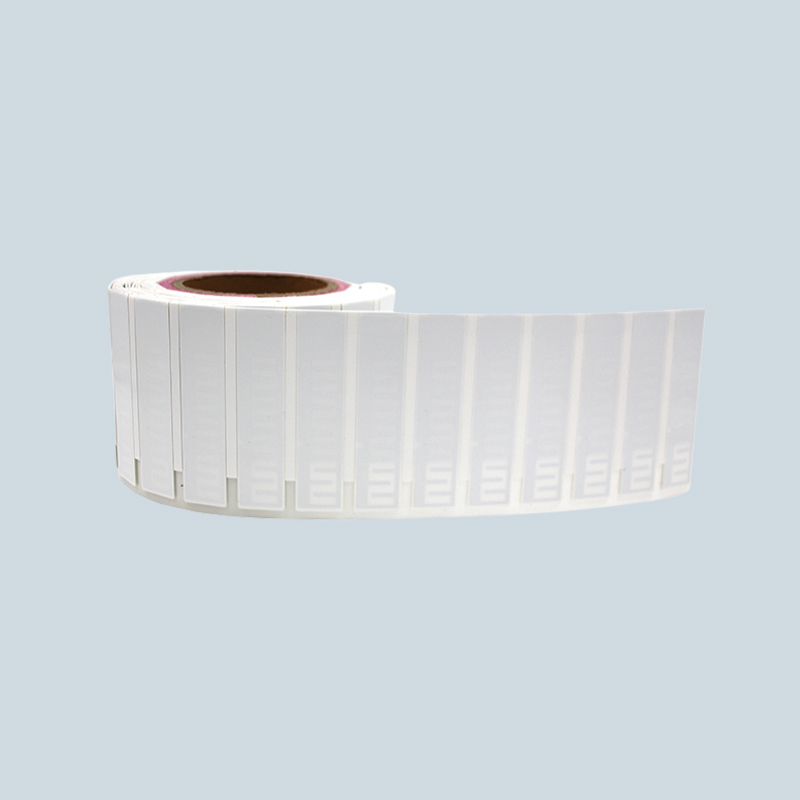

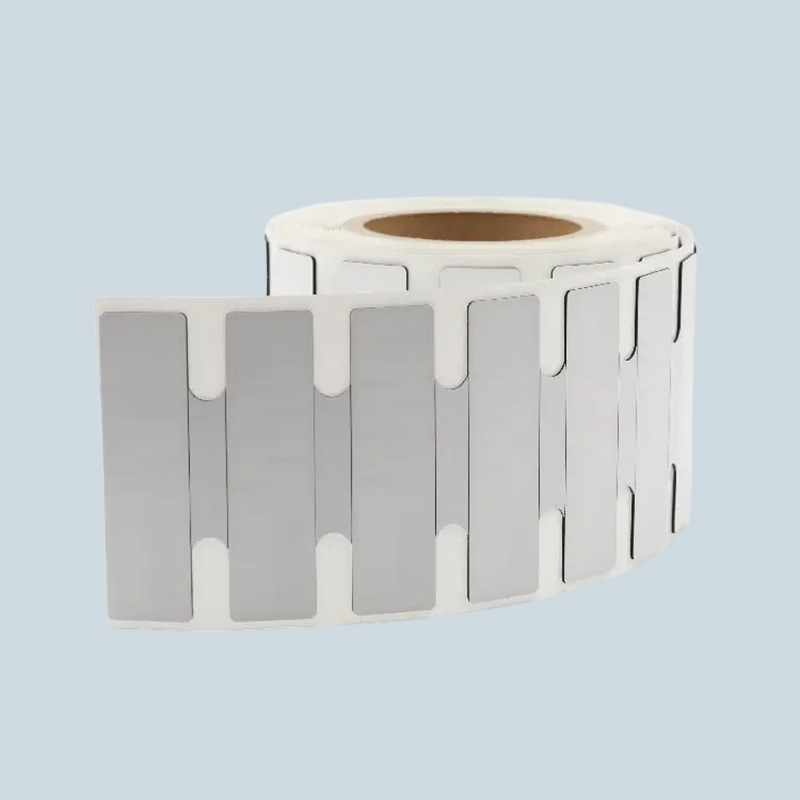

RFID Soft Metal Tags

Model No: ETS-RT 18 Series

Available Size

Size Read Range
100 x 40 x 1.25 8.5 mt
95 x 22 x 1.25 mm 7 mt
80 x 25 x 1.25 mm 7 mt
70 x 30 x 1 mm 5 mt
65 x 35 x 1.25 x 1mm 5 mt
60 x 25 x 1 mm 4 mt
55 x 15 x 1.25 mm 3.5 mt
30 x 15 x 1.25 mm 0.7 mt

Description

RFID Soft Metal Tags are also known as anti-metal label tags which are flexible and soft in nature. These tags are ideally meant for application on curved and flat surface. The RFID chip and antenna is embedded inside
specially designed soft PVC backed by foam and adhesive. It provides excellent accuracy and read range when applied to metal body for quick tracking and identification of assets. It works of UHF 865 – 928 Mhz frequency and fully compatible with all RFID Fixed and Handheld Readers available in the market. These tags are best fit for applications where hard and bulky metal tags cannot be used for example laptop IT Assets, hospital assets, pipes & rods etc. Slim and narrow size of the tag makes it easy for the user to mount it on complex assets like laptop, testing machines, servers and hard disks, wireless devices, tubes and cylinders etc. We use high quality industrial grade adhesive to provide extra grip and long life to the tag once attached on the asset.

Personalization services are also available which includes customized printing of logo, text, encoding, tag ID etc.

Application Areas

IT Equipment’s Like Laptop

PC

Instruments

Testing Machines

Lab Equipment

Office Furniture Tracking

Server

Hard Disk

Tablets

Phone

Technical Specification

Physical Specifications
Material TypePVC, PP , Foam with Adhesive at back side
Adhesive3M
Delivery formatRoll
No. of labels/Roll1,000 pcs /roll or 500 pcs/roll
IP RatingIP65
RFID Specifications
Operating modePassive
Frequency Band865-867 MHz
RF protocolEPC class 1 Gen 2
ICImpinj Monza R6-P / U Code
FunctionalityRead/Write
EPC memory128(96)bits
TID memory48-bit unique serial number
User memory32 bit
Access passwordAccess/Kill short-range mode
Kill passwordAccess/Kill short-range mode
Write cycle endurance2,00,000 cycles
Read rangeUp to 8 meters
Environmental Resistances
Operating temp.-40 °C to 85 °C
-40 °F to 185 °F
Relative humidity5-95% Non-Condensing
Personalization Options
EncodingPossible
Customized printingPossible
