Eco Track Systems

RFID School Attendance Tracking Tags

Model No: ETS-RT 17

Description

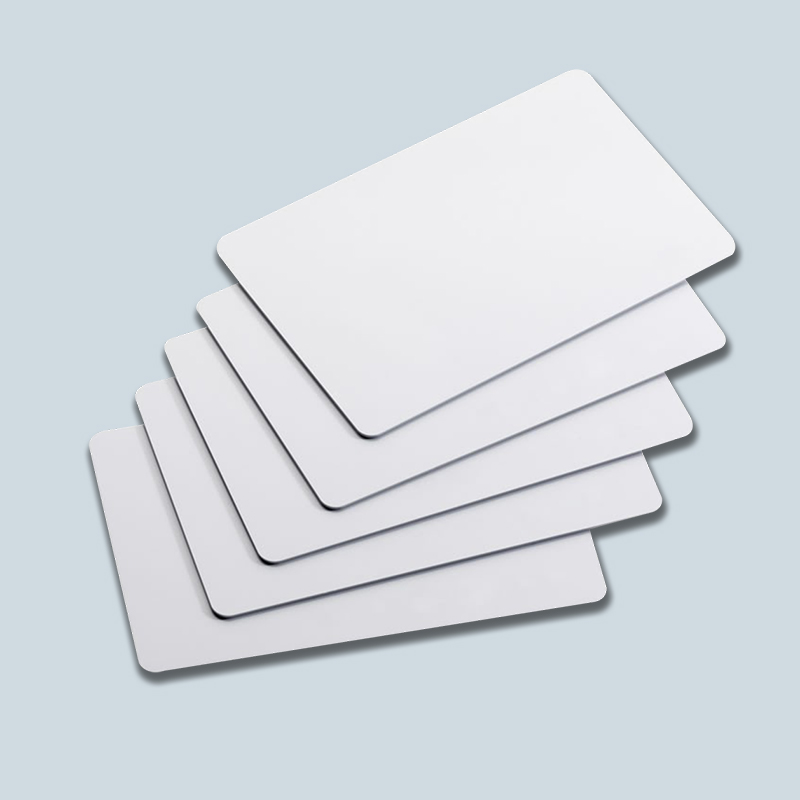

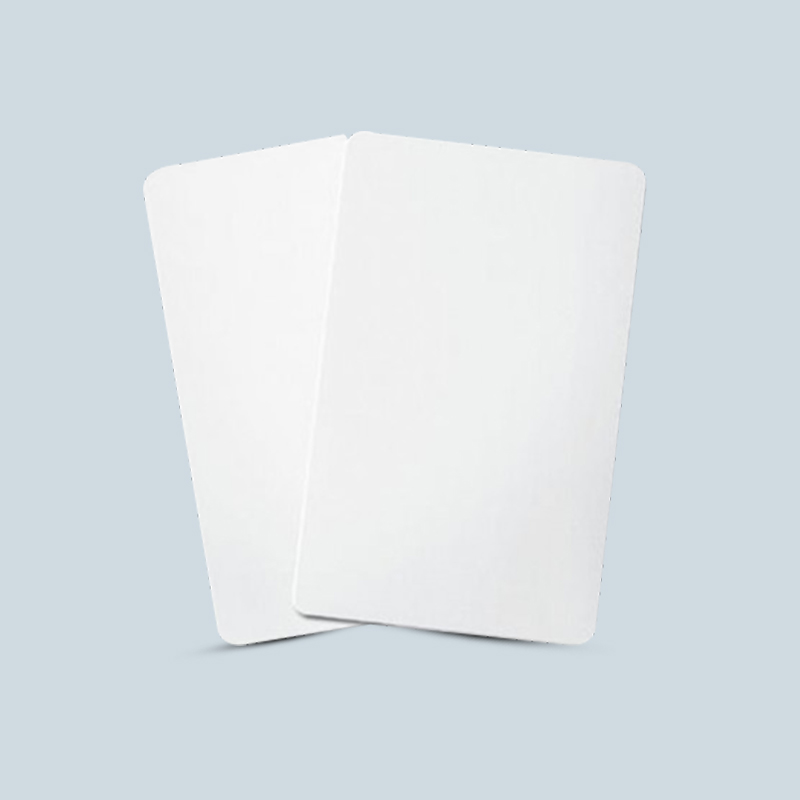

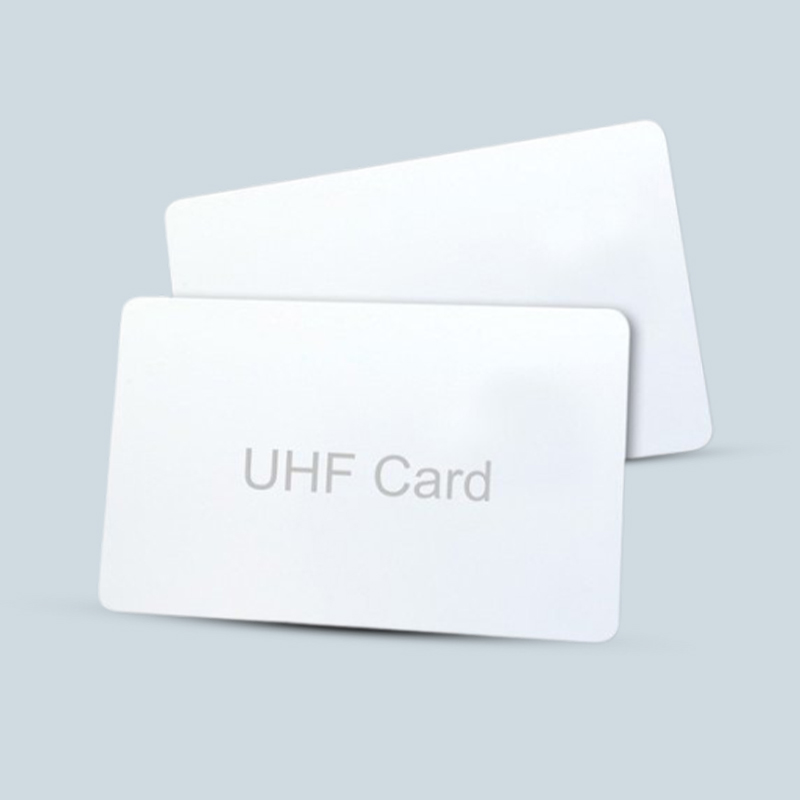

ETS-RT 17 is basically a RFID UHF Card which is used for tracking the movement and daily attendance in schools and colleges. Touchless RFID attendance system also known as walkthrough attendance tracking has recently gained importance specially during the covid time. As the name suggest, the system allows automatic tracking of attendance through RFID readers and gates which are installed at entry & exit of the campus. RFID UHF Cards are worn using a card holder and lanyard around the neck of the user. The cards can be custom printed with user details like photograph, name, class & section, admission number, emergency contact number, blood group, address, etc.

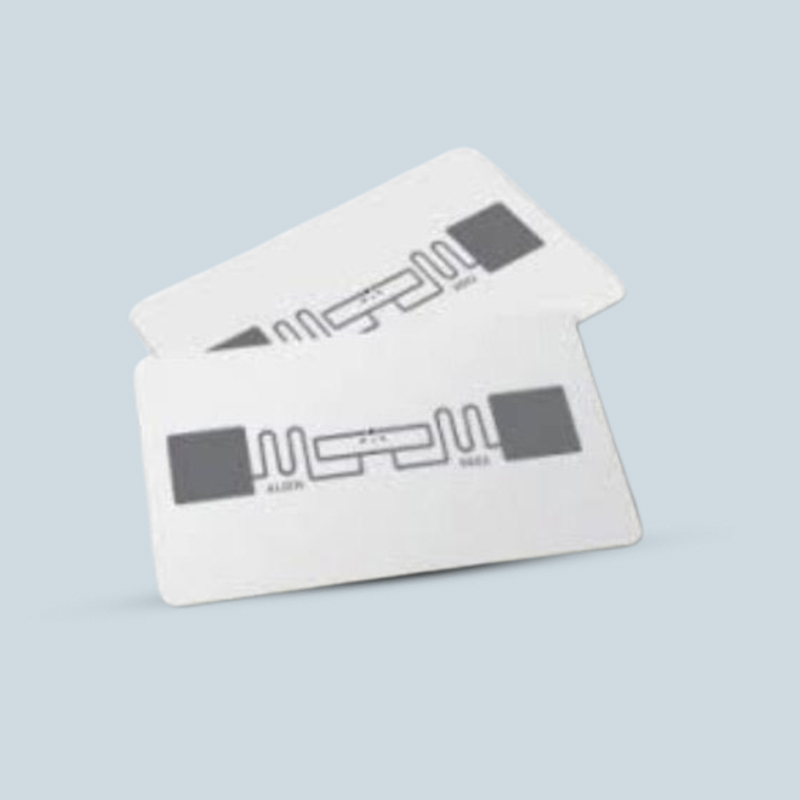

ETS-RT 17 attendance tracking cards are embedded with Alien 9962 inlay which is sandwiched between 3 thick layers of high quality PVC material with a glossy and shiny effect on both sides. It works on 865 – 928 MHz frequency and is fully compliant with ISO 18000 6C (EPC Class 1 Gen2) standards. It has a read range of up to 8 meters depending on the environment and reader configuration.

Eco Track systems is a pioneer in manufacturing and printing of RFID cards and tags. The printing is done inhouse using world class L4 machines instead of printers and hence we are able to provide 10 HD printing quality which lasts for up to 10 years without getting faded. Our cards are 100% quality tested and safely packed in plastic sheet packing to protect from scratching.

Features

865MHz-928 MHz

ISO 18000 6C EPC Class 1 Gen2

High Quality PVC material

Range: Upto 8 MT*

Water and Chemical Resistant

Customized printing & encoding

Application Areas

Student Attendance Management

Employee Movement Tracking

Access Control

Library Card

Asset Tracking

Parking Management

E-Payment

Technical Specification

Model NumberETS-RT 17
Frequency865-868MHz, 902-928 MHz
Chip TypeAlien 9662
ComplianceEPC Class1 Gen2 ISO 18000 – 6C
Working ModeRead and Write
Read RangeUp to 8 meters depending on reader configuration and environment
Data retention10 years
Anti-CollisionYes
Base MaterialHigh Grade
Operating Temperature-25°C to + 70°C
Storage Temperature-25°C to +50°C
Operating Humidity<= 80%
Package200 Qty in 1 box
Weight1.5 kg per box
PrintingYes available for both side
LaminationYes. Both side
Dimensions86mm x 54mm x 0.78mm
