Eco Track Systems

RFID Proximity Cards

Model No: ETS-RC 03

Description

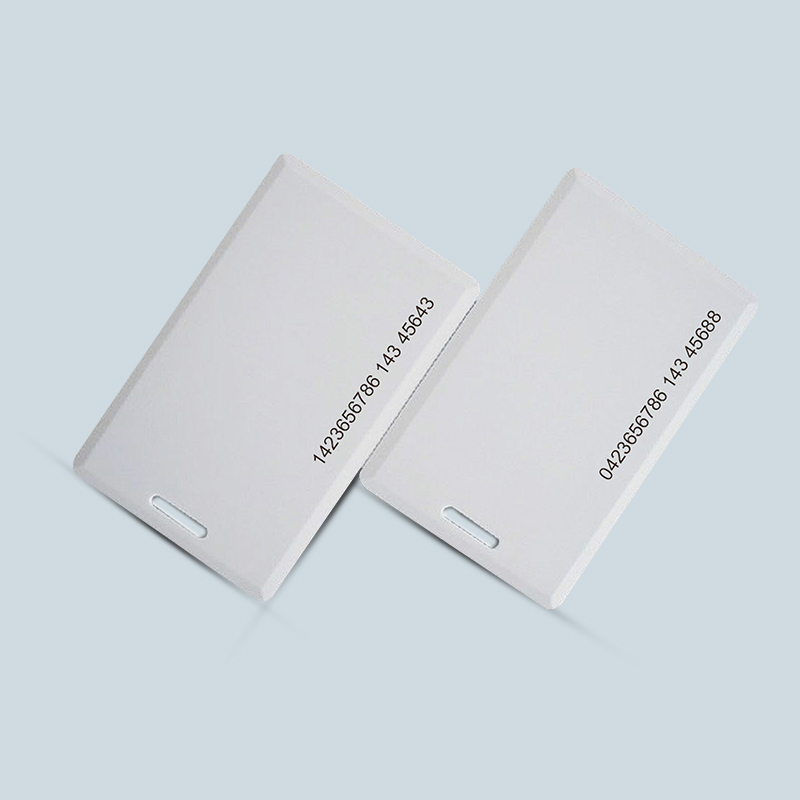

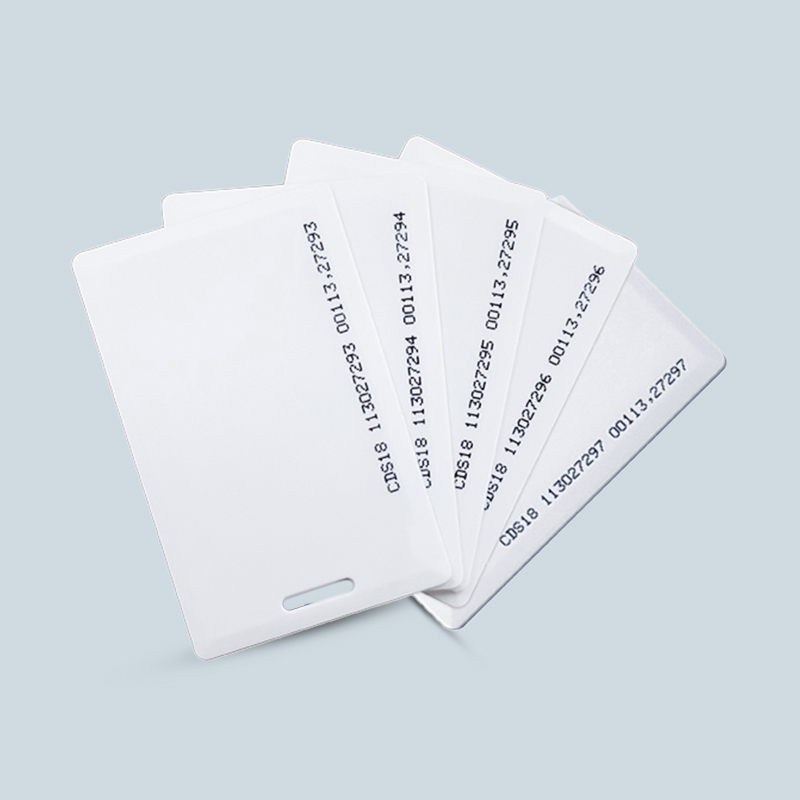

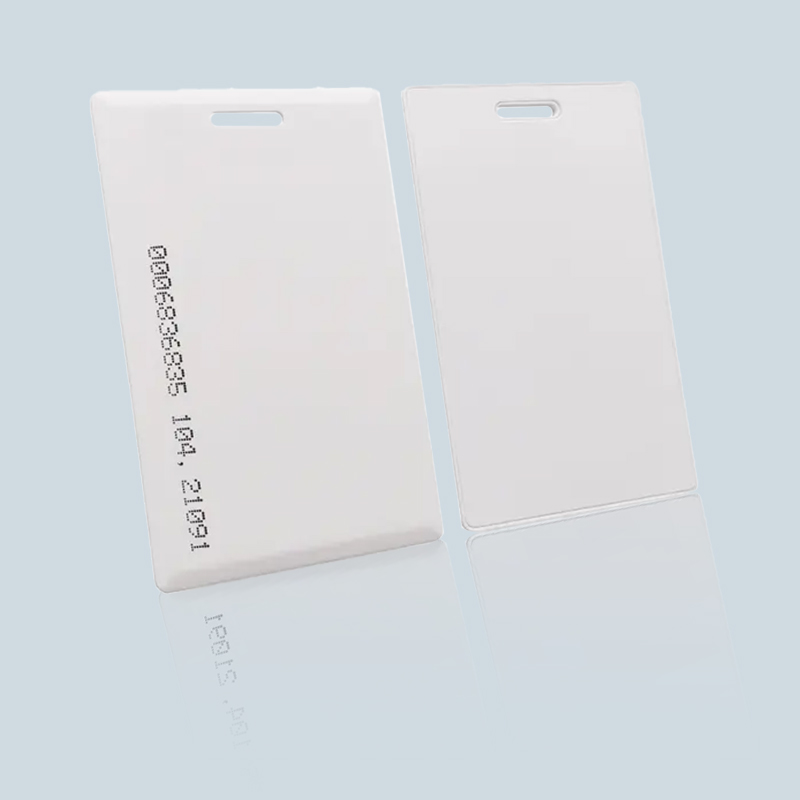

ETS-RC 03 are low frequency (LF) cards which are also known as proximity or access cards. As the name suggests it is most widely used in access control, security and identification applications. These contactless cards are read only cards and hence the information cannot be changed or modified. The serial number of these cards are recorded in the database when they come in contact with the proximity reader. These cards are most widely used in offices, school, colleges for attendance time tracking and gate access for authorized staff in the premises. It works on 125 KHz frequency and the antenna is embedded inside the thick layers of PVC. These cards are highly economical and best in class to secure the entry and exit of the premises. The unique ID of each card can be programmed and whitelisted in the access control software to allow access and can record details like name, contact, department, class/grade, address etc. The thin proximity card can fully be customized for printing photo, logo, text, unique numbers, QR Code etc. We use high quality printers to ensure that the artwork is 100% matched with the requirement of the project. Glossy and Matt finish are two most widely used effects in proximity cards. We can use sparkling silver or golden backgrounds to give premium look to the cards along with embossing and hologram. We offer 2 variants of Proximity Cards: Thin Proximity Card (Model: ETS-RC 03A) Clamshell Thick Proximity Card (Model: ETS-RC 03B)

Features

HF 13.56 MHz

ISO/IEC 14443

Glossy Shine Look

PET Material

High Grade PVC

Water resistant

Chemical Resistant

Customized Printing

Scratch Proof Surface

Application Areas

Identity Card

Attendance Management

Loyalty Card

Access Control

Event Management

E-Payment Card

Technical Specification

Model NumberETS-RC 03 Proximity Card
Frequency125 KHz (Low Frequency)
Chip Type (choose)EM 4200
TK 4100 (Compatible)
T5577
Working ModeEM 4305Read only
Read Range (Depends on reader and environment)2 mm (Thin Proximity)5 mm (Clamshell Thick Proximity)
Read and Write RangeDepends on chip and reader
Data retention10 years
Anti-CollisionYes
Base MaterialPVC / PET
Operating Temperature-25 to +70 degree Celsius
Storage Temperature-25 to +50 degree Celsius
Operating Humidity<= 80%

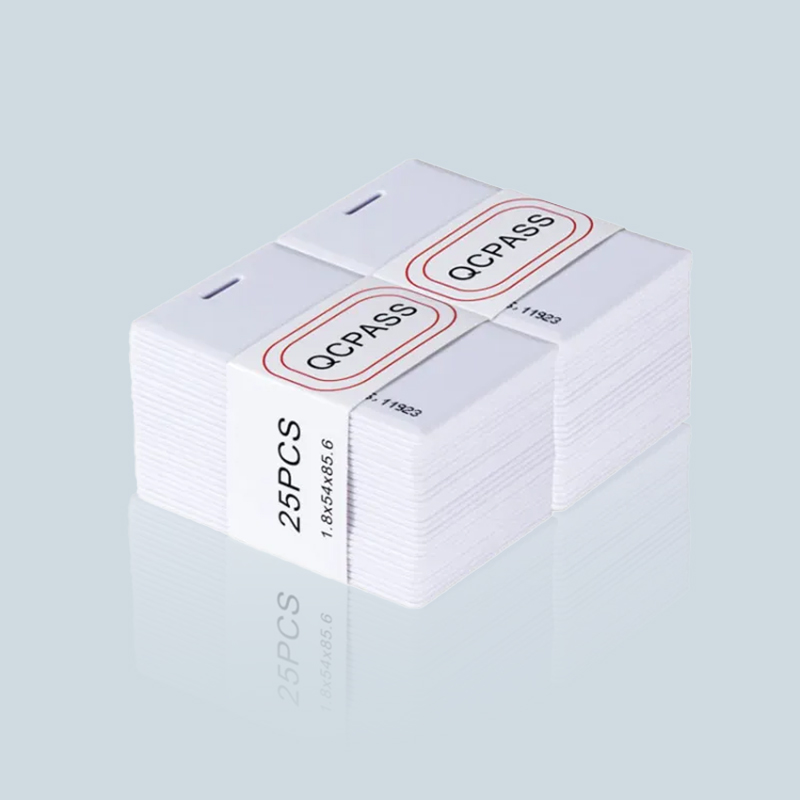

Package200 Qty in 1 box
Weight per piece1 gram (Thin Proximity)
9 gram (Clamshell Thick Proximity)
PrintingYes available for both side (Only on Thin Proximity Card)
LaminationYes. Both side
Dimensions86mm x 54mm x 0.78mm (Thin Proximity)
86mm x 54mm x 1.78mm (Clamshell Thick Proximity)
