Eco Track Systems

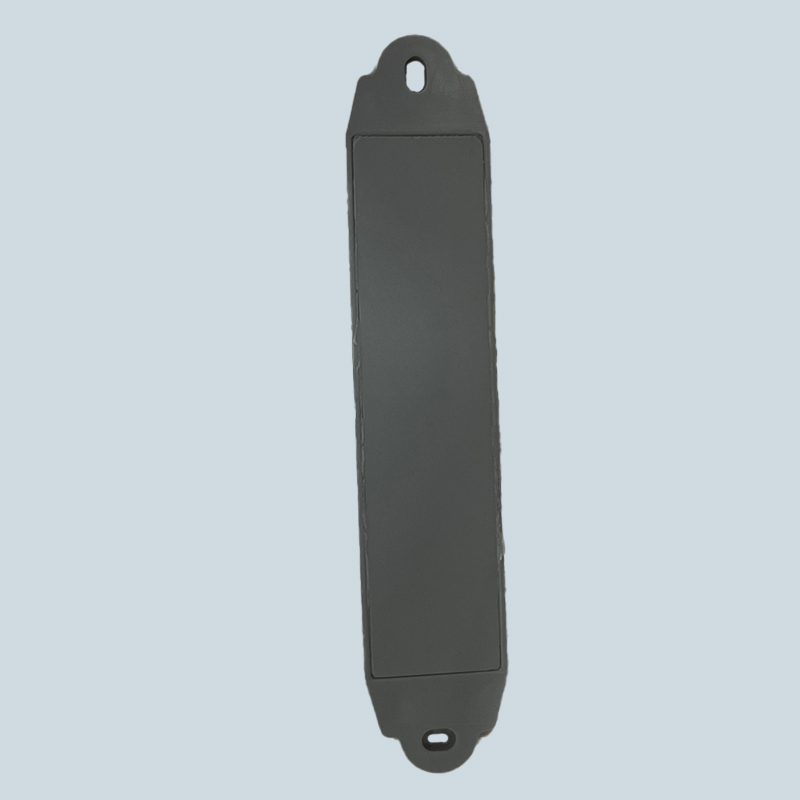

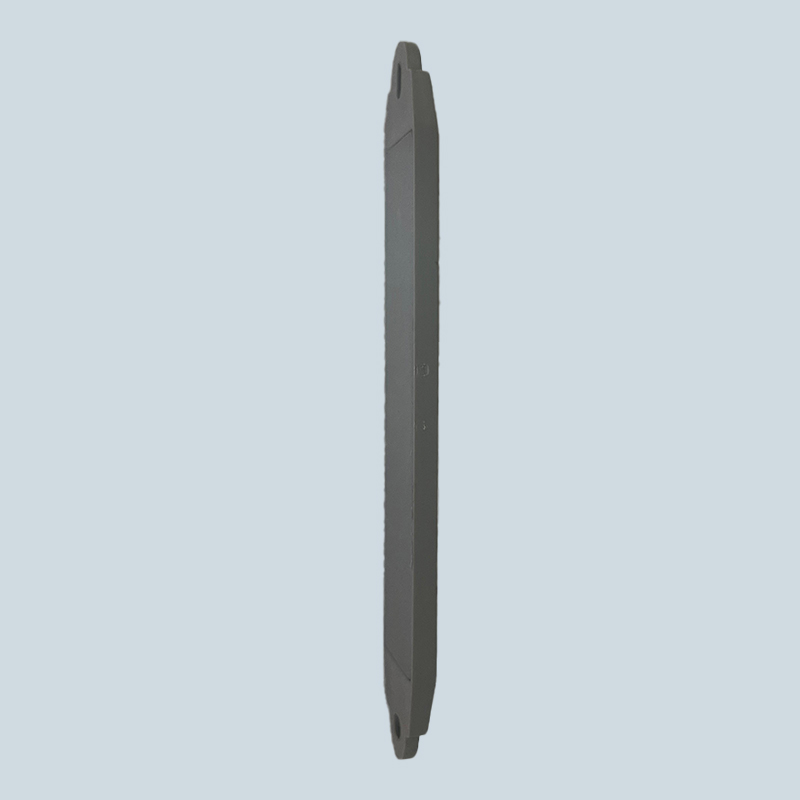

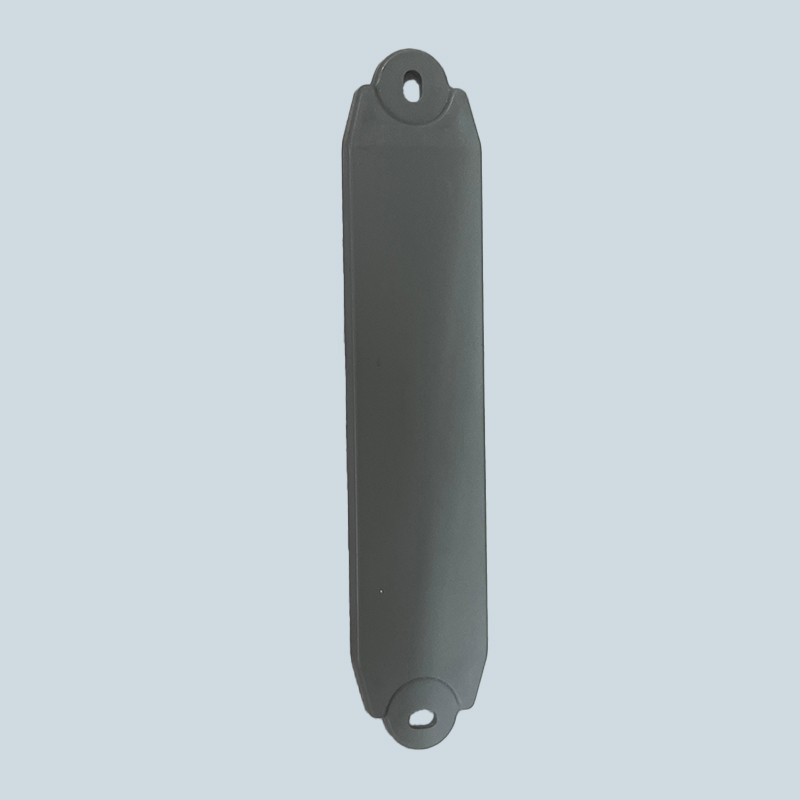

RFID Pallet Tag

Model No: ETS-RT 39

Description

ETS-RT 39 is a specially designed highly rugged and durable tag for application on pallets. It is EPC class 1 Gen2 complaint UHF tag that works on 865 – 928 MHz frequency. Its sleek design gives flexibility of attachment and to track and identify the pallets with great accuracy and read range. Further it can also be customized with various types of IC variants depending on memory requirement. There are multiple options to attach the tag on pallets that includes adhesive, rivet or screw. This uniquely designed tag is IP 67 rated and is best suitable for outdoor applications and harsh environment conditions.

RFID fixed readers are used to track the in and out movement of pallets from the gate while the RFID Handheld readers are used for tracking inventory and finding misplaced pallets in a big warehouse/ area. ETS-RT 39 provides seamless identification and management of pallets and crates and is 100% compatible with all UHF Readers available in the market.

Custom laser printing can be done on the tag which includes company logo, unique encoding of serial number, TAG ID, text etc.

Features

865 MHz-915 MHz

EPC Class 1 Gen2, ISO 18000-6C

Range Range: Upto 12 MT.

IP67

Pallet and Crates Application

Chemical & Water Resistant

Shock & Vibration Resistant

Custom Laser Printing

Rivet/Screw /Adhesive

Application Areas

Warehousing

Manufacturing

Logistics

Supply Chain

E-Commerce

Oil and Gas

FMCG

Technical Specification

Electrical Characteristics
Communication ISO ProtocolISO/IEC 18000-6C, EPC Class – 1 Gen2
Operating Frequency band865 MHz or 915 MHz
Chip typeAlien Higgs-3 (Other upon request)
Memory organisationEPC–96 bits, extendible to 480bits
TID – 96 bits unalterable &unique
User memory – 512 bits
Access password – 32 bits
Kill password – 32 bits
Read RangeOff metal – Up to 12m (reader & environment dependent)
Data retention50 Years
Endurance cycle100,000 Cycles
Physical Characteristics
Dimension112 x 22mm
Thickness4.0mm
Hole size3 x 5mm
EncasementABS/PC
Weight9.2 gm
ColorGrey
Quality Testing100%
Environmental Resistances
Ingress ProtectionIP67
Operating Temperature-25°C to +85°C
Storage Temperature-25°C to +85°C
ApplicationOff metal
Attachment/ mountingAdhesive / Rivet / Screw
Personalization Options
EncodingPossible
Customized printingPossible
Chemical Characteristics
Resistance to salt water exposureYes
Resistance to lubricant exposureYes
Resistance to IPA & thinnerYes
ApplicationOff metal
Attachment/ mountingAdhesive / Rivet / Screw
