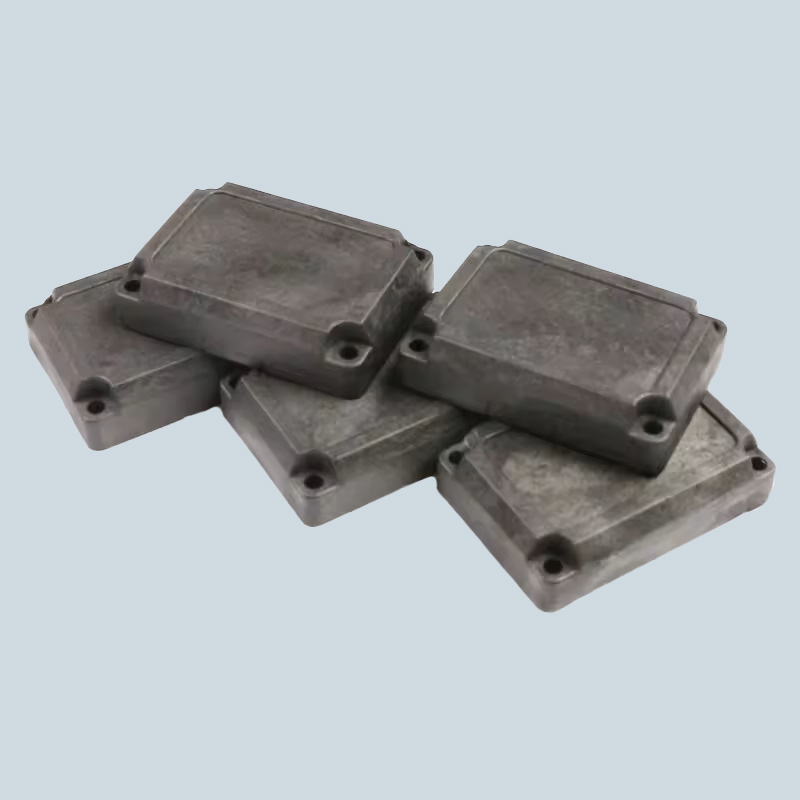

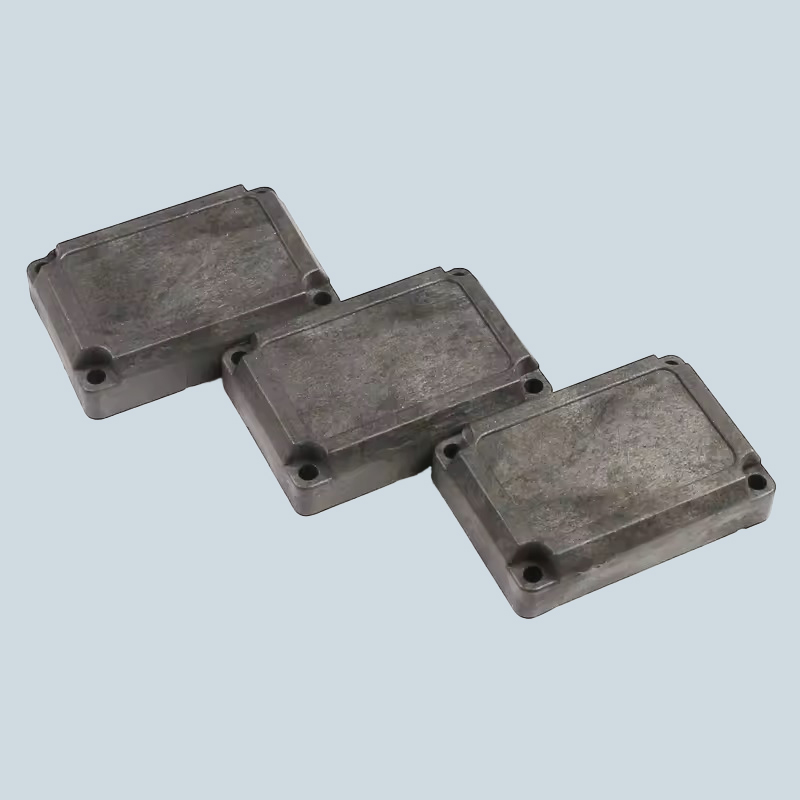

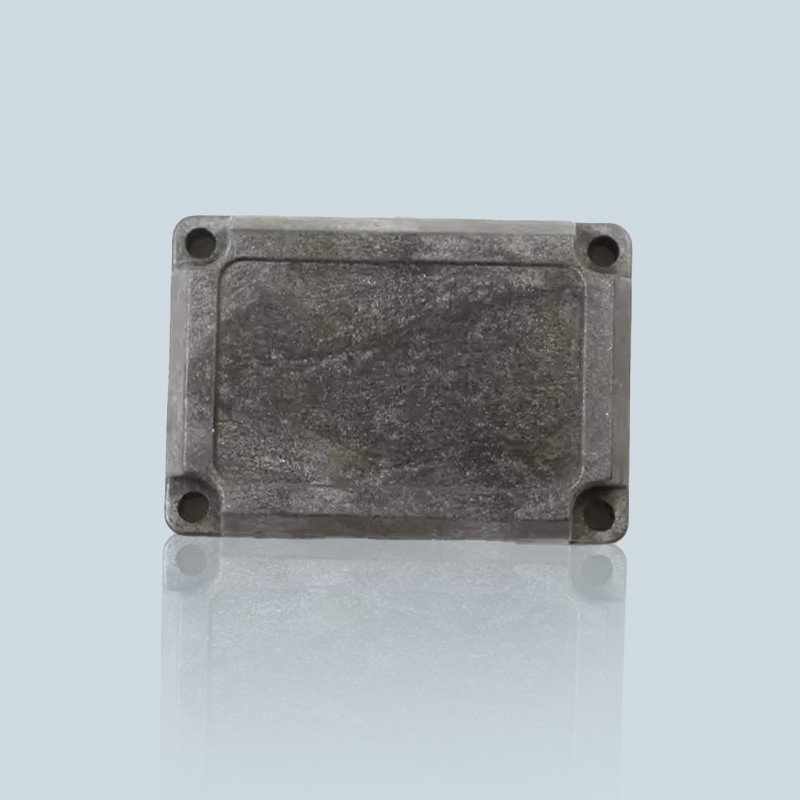

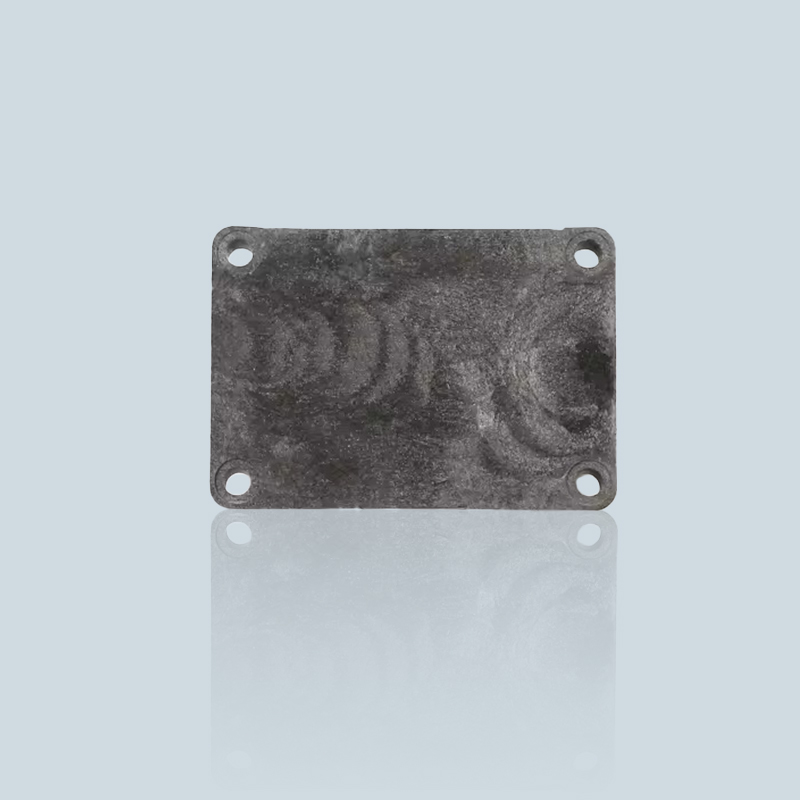

RFID High Temperature And Acid Resistant Tag

865 MHz-915 MHz

EPC Class 1 Gen2 ISO 18000-6C

Upto 300°С

IP69K

Read Range: Upto 6 Meters

Chip: NXP Ucode 8

Compact Size & Light Weight

Data Retention 50 Years

Mounting Methods

Chemical & Water High Temperature Resistant

Shock & Vibration Resistent

Custom Laser Printing

Oil and Gas

Automobile

Chemical & Paints

Injection Molding & Die Casting

Sterilization in medical & hospital

Technical Specification

Functional Specifications
Protocol	EPC Class1 Gen2, ISO18000-6C
Frequency	US 902-928MHz, EU 865-868MHz
IC type	NXP UCODE 8
Memory	EPC 128bits , USER 0bits, TID 96bits
Write Cycles	100,000 times
Functionality	Read/write
Data Retention	50 Years
Applicable Surface	Metal Surfaces
Read Range(On Metal): (Fix Reader)	6.5m , US ( 902-928MHz ) 6.0m , EU ( 865-868MHz )
Read Range(On Metal): (Handheld Reader)	3.5m , US ( 902-928MHz ) 3.5m , EU ( 865-868MHz )
Applicable Surface	Metal Surfaces
Warranty	1 Year
Physical Specification

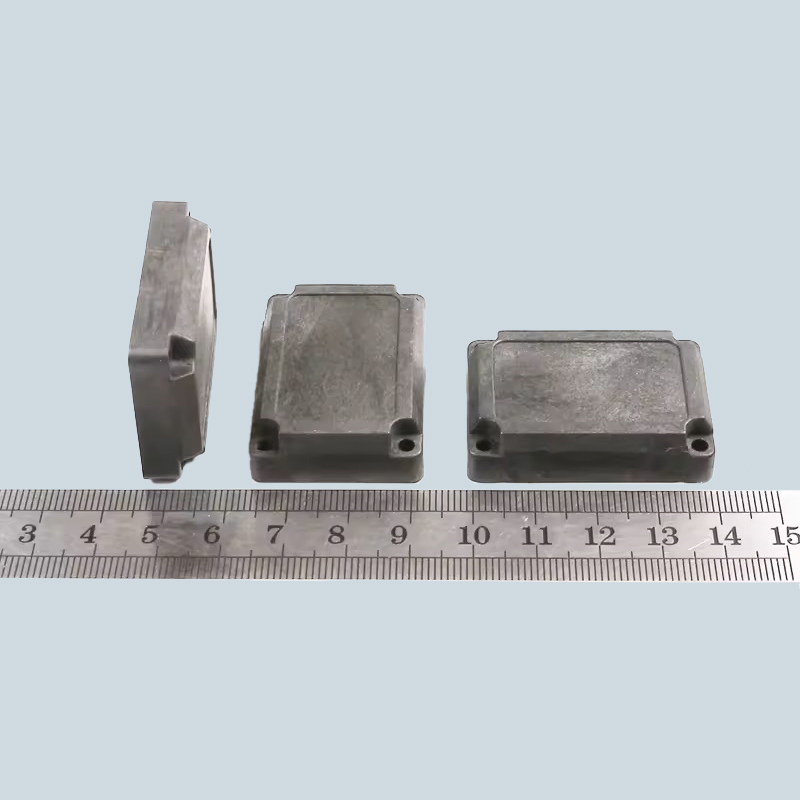

Size	41.0x29.0mm, Hole: D2.3mmx4
Thickness	9.0mm
Material	PEEK
Colour	Black
Mounting Methods	Screw - Socket head cap screw(M2)
Weight	15g
Environmental Specification
IP Rating	IP68, IP69K
Storage Temperature	-60°С to +260°С, +300°С100 hours
Operation Temperature	-40°C to +200°C
Withstand PH	PH0 to PH14,and all other liquid that PEEK can handle with
Reliability testing terms and results	a. Withstand 300°С for 100 hours continuously without damage. b. Withstand 280°С for 1000 hours continuously without damage. c. Withstand 260°С for 2000 hours continuously without damage. d. Withstand -20°С for 8 hours then 260°С for 16 hours per day, 80 days continuously without damage. e. Withstand from 150°С to -40°С, 7.5 cycles per day, 80 days continuously with total 600 cycles without damage. f. Withstand 260°С for 100 hours continuously then soaking in 2 meters depth water for 48 hours, without seepage or damage.
Compression strength	150Mpa
Certifications	Certifications Reach, RoHs, CE
