Eco Track Systems

RFID Fabric Tag

Model No: ETS-RT 07C

Description

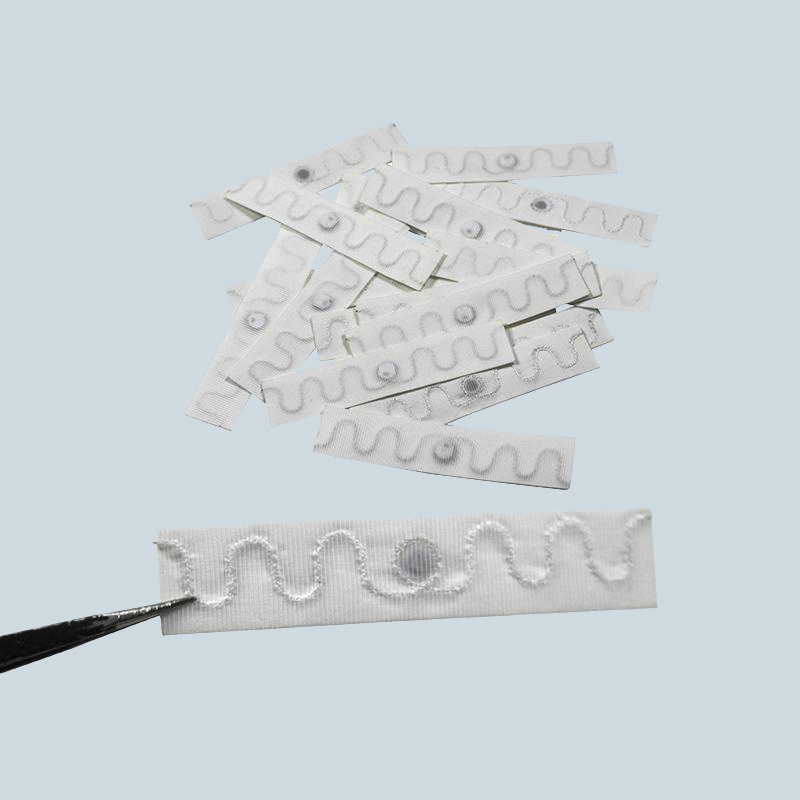

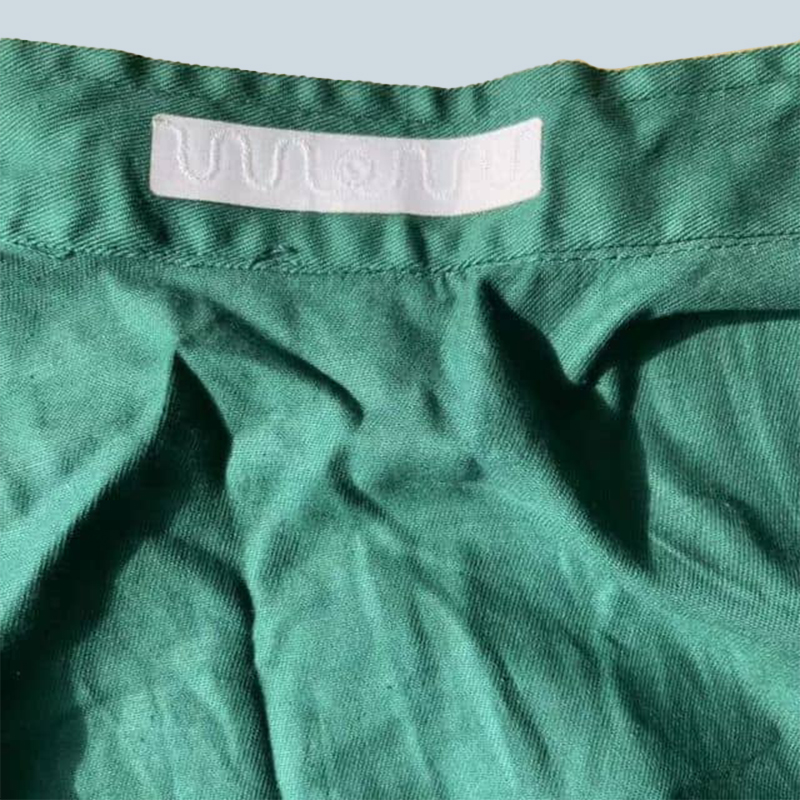

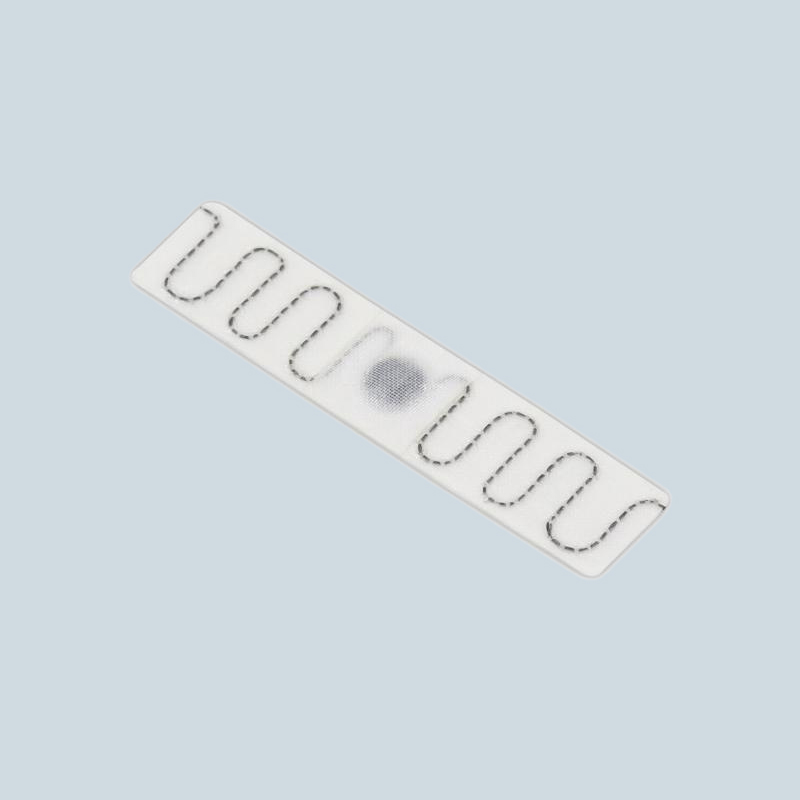

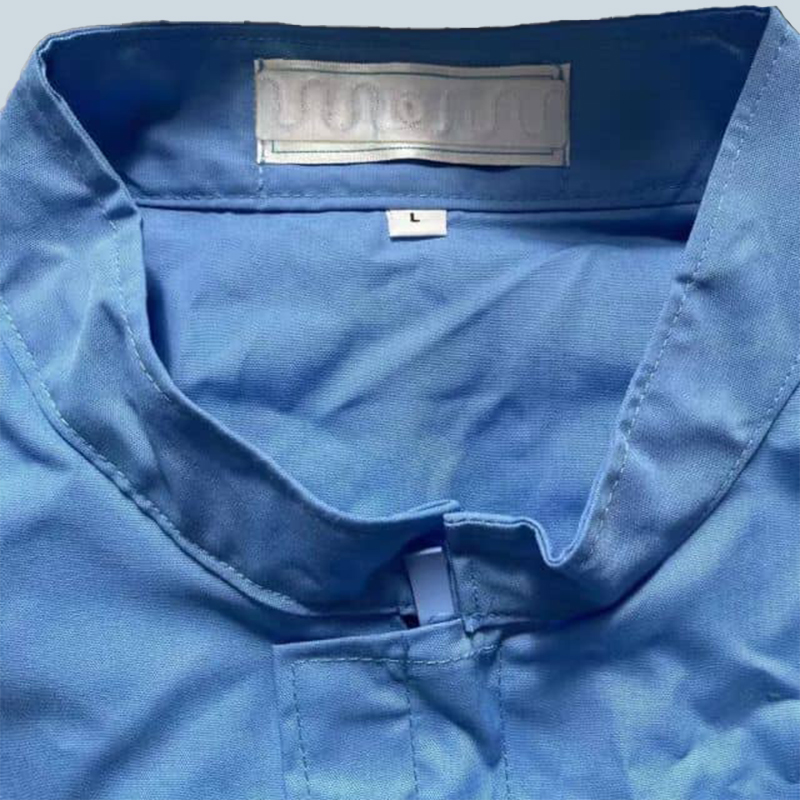

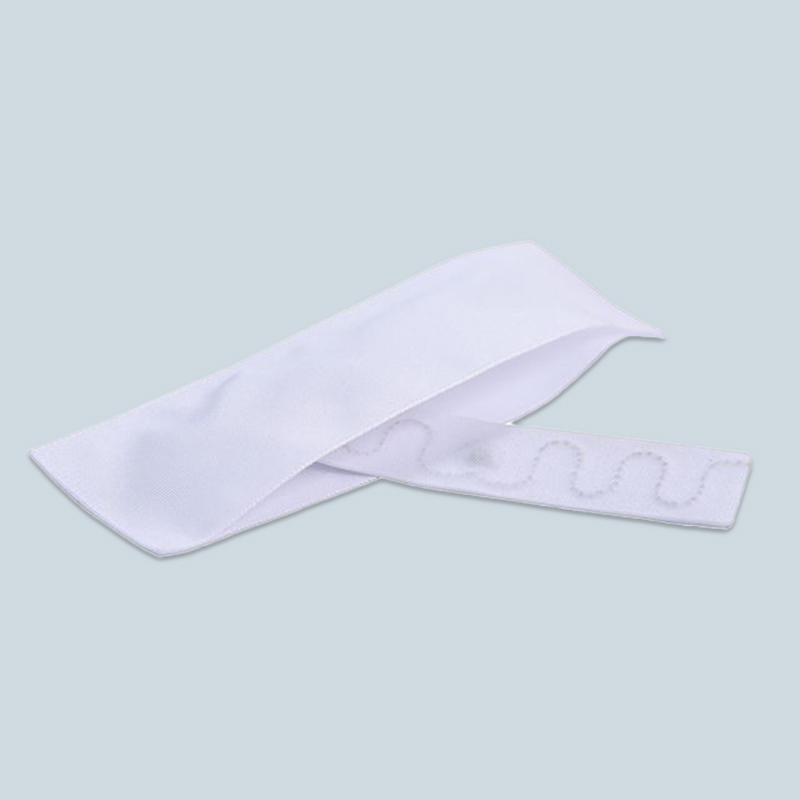

ETS-RT 07 C is one of the bestselling tags for laundry applications. This tag has been specifically designed to be discreetly integrate into the linen and other textile items used in commercial laundry and places like hotels and hospitals. Due it its unique small design, it can be seamlessly inserted into the hem of the textile item. This tag is based on a unique concept that couples a very small UHF device with a sewed, secondary antenna made from flexible stainless steel thread-like material.

One of the best properties of this tag is its high temperature endurance. It can withstand 180 degree high temp ironing and can last up to 200 time industrial washing. It can have up to 4 mt read range depending on the environment and reader. It works on global UHF Frequency standards and if fully compliant with 18000 63 protocols.

Features

865 MHz - 928MHz

EPC Gen1 ISO 18000-63

Range upto 4 meter

Upto 200 Wash Cycle

Water Resistant

Chemical Proof

Linen Friendly

Application Areas

Clothes Retail Companies

Hospitality

Hospital

Industrial Washing

Military / defense clothing management

Management Uniform

Technical Specification

Physical Specification
Inlay size54 mm X 34 mm & 74 mm X 18 mm
Label size (customizable)60 mm X 57 mm
AdhesiveNA
Delivery formatReel
No. of labels/Reel10,000 pcs/reel
PitchNA
Core Inner diameter76 mm / 3 in
Available face materialTaffeta
RFID Specifications
Operating ModePassive
Frequency BandUHF 860-960 MHz
RF ProtocolISO/IEC 18000-63 Type C
ICNXP UCODE 8 & M730
FunctionalityRead/write
EPC Memory128-bit
TID Memory96-bit / 48-bit unique serial number
User MemoryNA
Web Width48mm / 2 in
Access Password32
Kill Password32
Write cycle endurance200000 cycles
Read Rangeup to 4 meter
Tamper ProofNo
ROHsEU Directive 2011/65/EC & Directive (EU) 2015/863
CertificateARC
Environmental Resistances
Operating Temp.-40°C to 85°C, -40°F to 185°F
Ideal storage condition5-95% non condensing
Relative HumidityNo
UV ResistantNA
Personalization Options
EncodingPossible
Customized PrintingPossible
