Reusable PVC Asset Tag
Model No: ETS-RT 24 Series
Description
ETS-RT 24 is a specially designed reusable tag made using high quality PVC material. It works on UHF 865-868 MHz frequency and is fully compliant with ISO 18000-6B & 6C standards. The UHF chip is embedded inside the hard PVC material which makes it rugged and durable for daily outdoor operations.It comes with a hole on top side / both sides which is used for the purpose of hanging / attaching on assets. The tag can be customized with various chip options and memory size.
- It is available in 3 different sizes:
- 35 mm x 15 mm x 0.85 mm (Type A)

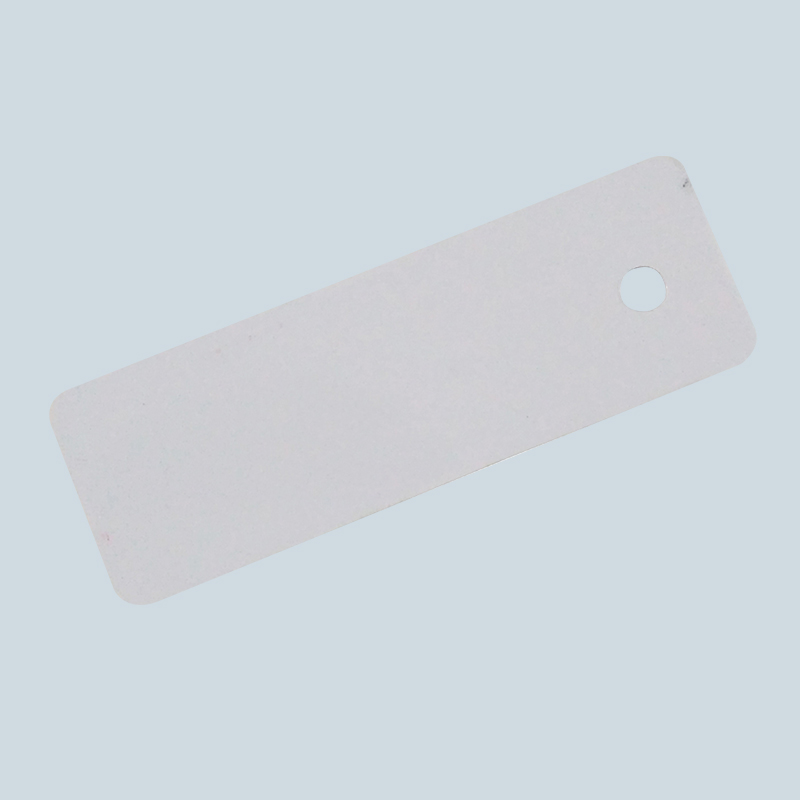

- 80 mm x 25 mm x 0.70 mm (Type B)

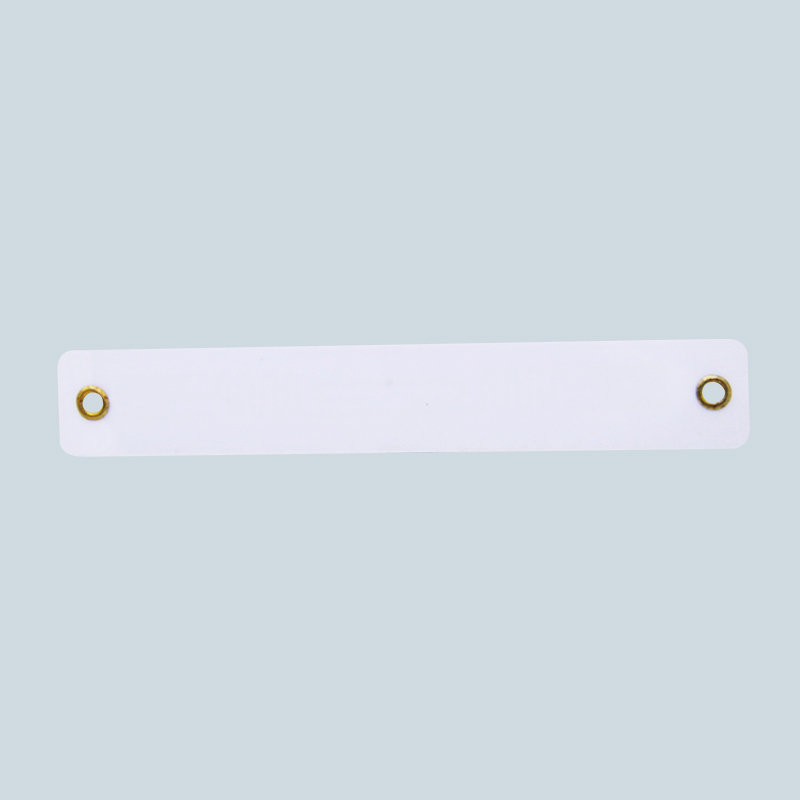

- 120 mm x 20 mm x 0.50 mm (Type C)
Features
UHF
EPC Class 1 Gen2 ISO 18000-6B & 6C
Reusable
Read Range: 3 to 10 MT.
IP66
Glossy Surface
Sleek & Elegant design
Water and chemical proof
Customized Printing
Application Areas
Oil and Gas
Automobile
Chemical & Paints
Injection Molding & Die Casting
Sterilization in medical & hospital
| Model | Type - A | Type - B | Type - C |
| Electrical Characteristic | |||
| Communication ISO Protocol | ISO ProtocolISO/IEC 18000-6C, EPC Class -1 Gen2 | ||
| Operating Frequency Band | 865 MHz or 915 Mhz | ||
| Chip Type | Alien Higgs 3 or Monza R6 | ||
| Memory Organisation | EPC - 96 Bit, extendable to 480 bits TID – 96 Bit User Memory – 512 Bits Access Password – 32 Bits Kill Password – 32 Bits | ||
| Read Range | 3 meters | 4 meters | 10 meters |
| Data Retention | 50 Years | ||
| Endurance Cycle | 100,000 Cycles | ||
| Physical Characteristics | |||
| Dimension | 35 mm x 15 mm | 80 mm x 25 mm | 120 mm x 20 mm |
| Thickness | 0.85 mm | 0.70 mm | 0.50 mm |
| Hole Size | 0.2 mm | ||
| Encasement | PVC | ||
| Weight | 1.5 grams | 2.3 grams | 3.7 grams |
| Colour | White | ||
| Quality Testing | 100% | ||
| Environment Characteristics | |||
| Ingress Protection | IP 66 | ||
| Operating Temperature | -20 degree cel. to +60 degree cel. | ||
| Storage Temperature | -20 degree cel. to +60 degree cel. | ||
| ApplicationOn | On and Off Metal | ||
| Attachment / Mounting | Nylon Thread / Lanyard / Screw | ||
| Chemical Characteristics | |||
| Resistance to Salt Exposure | Yes | ||
| Resistance to Lubricant Exposure | Yes | ||
| Resistance to IPA and Thinner | Yes | ||
| Additional Customization | |||
| Encoding | Yes | ||
| Logo / Text/ Barcode Printing | Yes |
