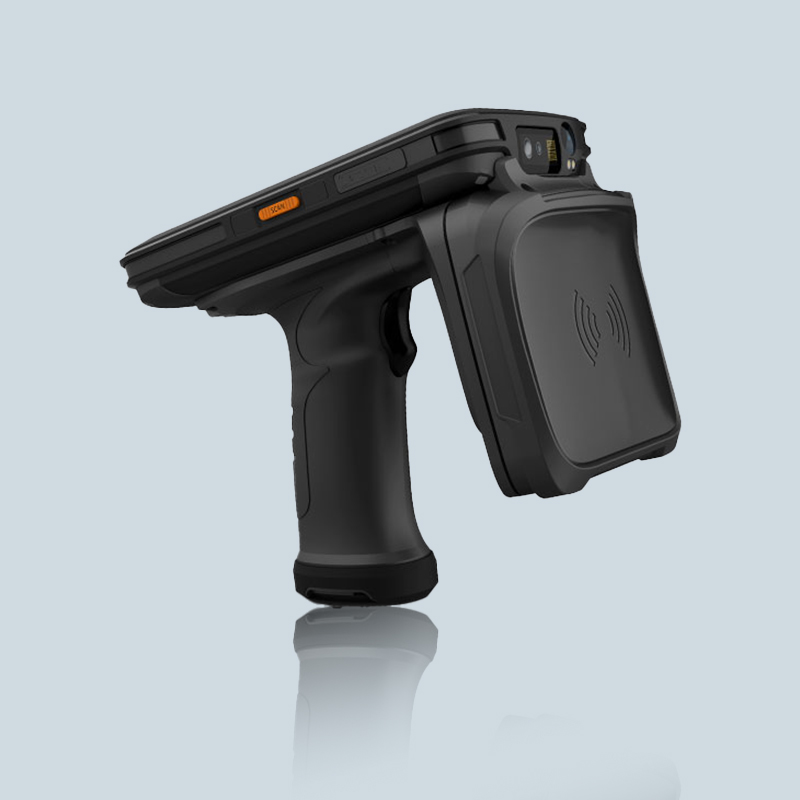

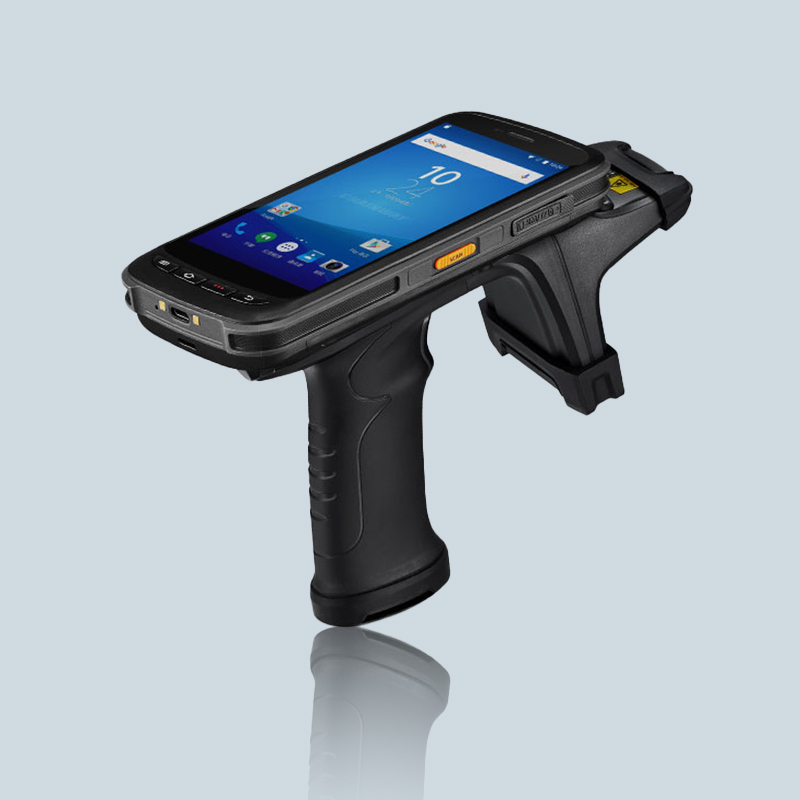

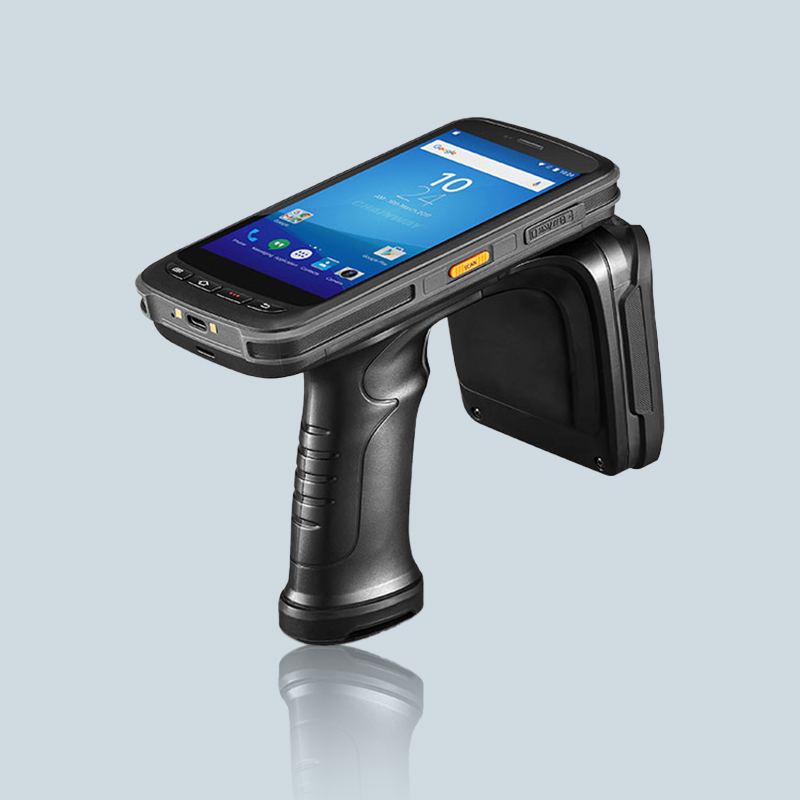

Handheld RFID Reader
Model No: ETS-72
Description
ETS-72 is one of the most powerful next generation RFID Handheld reader based on android platform. Built on Impinj R2000, chipset, it enables more than 15m of read range. The RFID reader features optional barcode scanning, Octa-Core processor and 8000mAh powerful battery to perfectly meet demands in intensive applications, especially in asset management, retail, warehousing, apparel inventory, expressway toll, fleet management, finance, etc.
Features
Android 8.1 /11
8000mAh Powerful Battery
4G / Dual-band WIFI
RAM+ROM: 3+32GB / 4+64GB
Screen 5.2'' IPS 1080P
Cortex-A53 2.5 2.3 GHz Octa-core
UHF RFID (Impinj E710/R2000 Chip)
Barcode Scanning 1D,2D
13MP Autofocus Camera
Accurate GPS
Application Areas
Warehouse
Apparel
Jewellery Tracking
Asset Management
Production
Toll Plaza
| Data Collection | |
| RFID UHF | |
| Engine | CM710-1 module based on Impinj E710 CM2000-1 module based on Impinj Indy R2000 |
| Frequency | 865-868 MHz / 920-925 MHz / 902-928 Mhz |
| Protocol | EPC C1 GEN2 / ISO18000-6C |
| Antenna | Circular polarization (4dBi), linear polarization(1.8dBi) |
| Power | 1 W (30 dBm, +5 dBm to +30 dBm adjustable) 2 W Optional (33 dBm, for Latin America, etc.) 2 W Optional (33 dBm, for Latin America, etc.) |
| R/W range | Up to 15 m (circular polarization, open outdoors, Impinj MR6 tag); up to 7 m (linear polarization, open outdoors) |
| Fastest Read Rate | 900+ tags/sec (circular polarization) |
| Barcode Scanning (Optional) | |
| 1D Linear Scanner | Zebra: SE965; Honeywell: N4313 |
| 1D Symbologies | UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5,Codabar, MSI, RSS, etc. |
| 2D Imager Scanner | Zebra: SE4710 / SE4750 / SE4750MR; Honeywell:N6603 |
| 2D Symbologies | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc. |
| NFC (Optional) | |
| Frequency | 13.56 MHz |
| Protocol | ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc. |
| Chips | M1 card (S50, S70), CPU card, NFC tags, etc. |
| Range | 2-4 cm |
| Performance | |
| Operating System | Android 8.1; SafeUEM supported |
| CPU | Cortex-A53 2.5 GHz Octa-core |
| RAM+ROM | 3 GB + 32 GB / 4 GB + 64 GB (optional) |
| Expansion | Supports up to 128 GB Micro SD card |
| Communication | |
| WLAN | IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna |
| Bluetooth | Bluetooth v2.1+EDR, 3.0+HS, v4.1+HS |
| GNSS | GPS/AGPS, GLONASS, BeiDou; internal antenna |
| WWAN (China) | 2G: 900/1800 MHz 3G: WCDMA: B1,B8 CDMA2000 EVDO: BC0 TD-SCDMA: B34,B39 4G: B1,B3,B5,B8,B34,B38,B39,B40,B41 |
| WWAN (Overseas) | 2G: 850/900/1800/1900 MHz 3G: B1,B2,B4,B5,B8 4G: B1,B2,B3,B4,B5,B7,B8,B12,B17,B20,B25,B40,B66 |
| Physical Characteristics | |
| Dimensions | 164.2 x 80.0 x 24.3 mm / 6.46 x 3.15 x 0.96 in. |
| Weight | 654 g / 23.07 oz. |
| Display | 5.2'' IPS LTPS 1920 x 1080 |
| Touch Panel | Touch Panel Corning Gorilla Glass, multi-touch panel,gloves and wet hands supported |
| Power | Li-ion, rechargeable, 8000 mAh Standby: over 500 hours Continuous use: over 12 hours (depending on user environment) Charging time: 3-4 hours (with standard adaptor and USB cable) |
| Expansion Slot | 1 slot for Nano SIM card, 1 slot for Nano SIM or TF card |
| Interfaces | USB 2.0 Type-C, OTG, Type-C headphones supported |
| Audio | Speaker, 2 microphones |
| Keypad | 4 front keys, 1 power key, 2 scan keys, 1 multifunctional key |
| Sensors | Light sensor, proximity sensor, gravity sensor |
| User Environment | |
| Operating Temp. | -4°F to 122°F/-20°C to 50°C |
| Storage Temp. | -40°F to 158°F/-40°C to 70°C |
| Humidity | 5% RH - 95% RH non condensing |
| Drop Specification | Multiple 1.5 m / 4.9 ft. drops (at least 20 times) to the concrete across the operating temperature range |
| Tumble Specification | 1000 x 0.5 m / 1.64 ft. falls at room temperature |
| Sealing | Sealing IP65 per IEC sealing specifications |
| ESD | ESD ±15 KV air discharge, ±6 KV conductive discharge |
| Developing Environment | |
| SDK | ETS Software Development Kit |
| Language | Java |
| Tool | Eclipse / Android Studio |
| Accessories | |
| Standard | AC Adaptor, USB Cable, etc. |
| Optional | Cradle, Holster , etc. |
| Camera | |
| Camera | 13 MP Autofocus with flash |
