Eco Track Systems

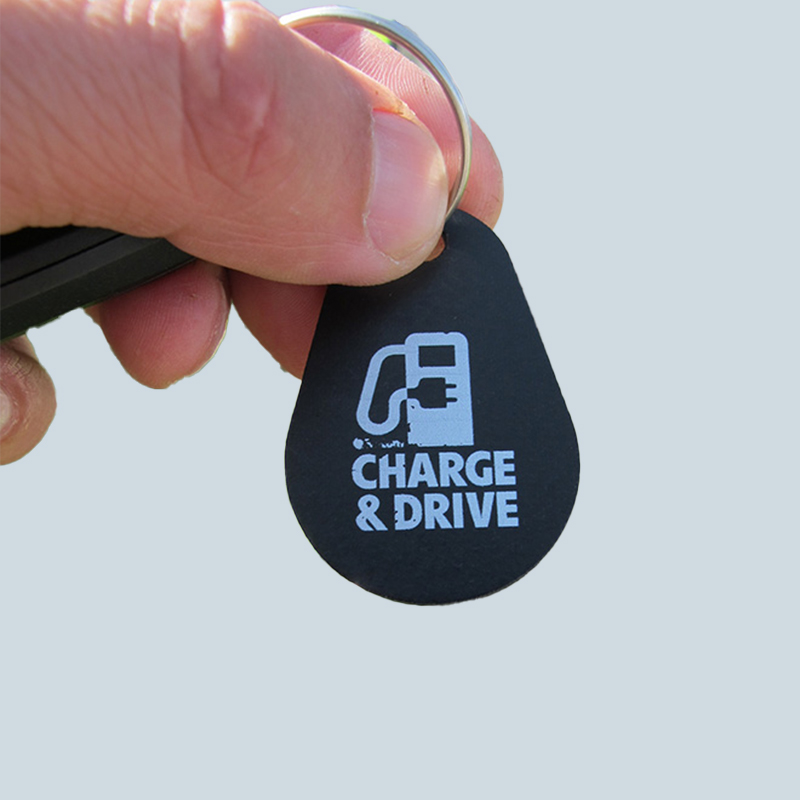

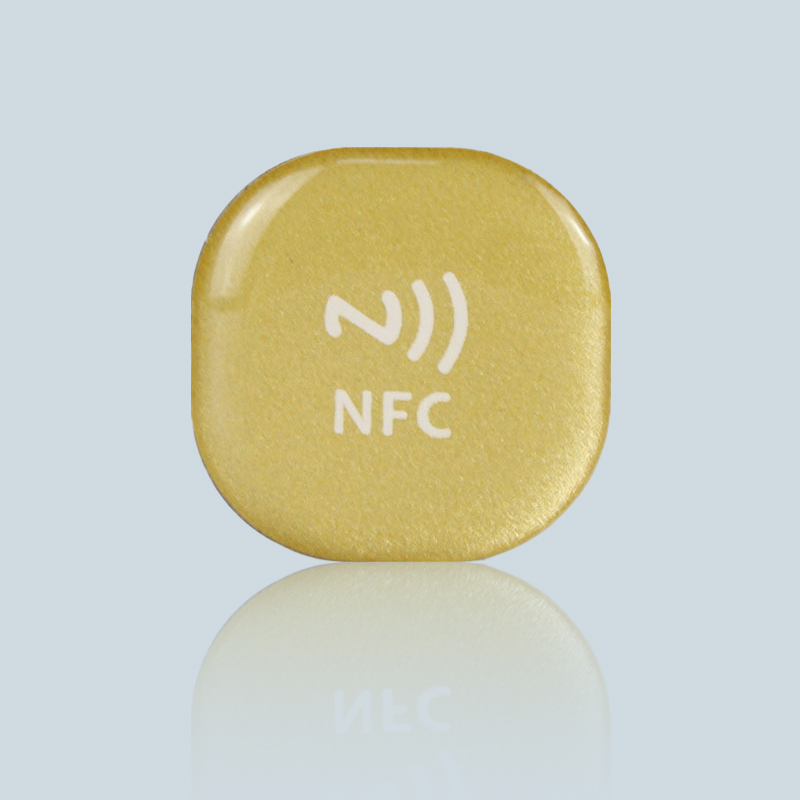

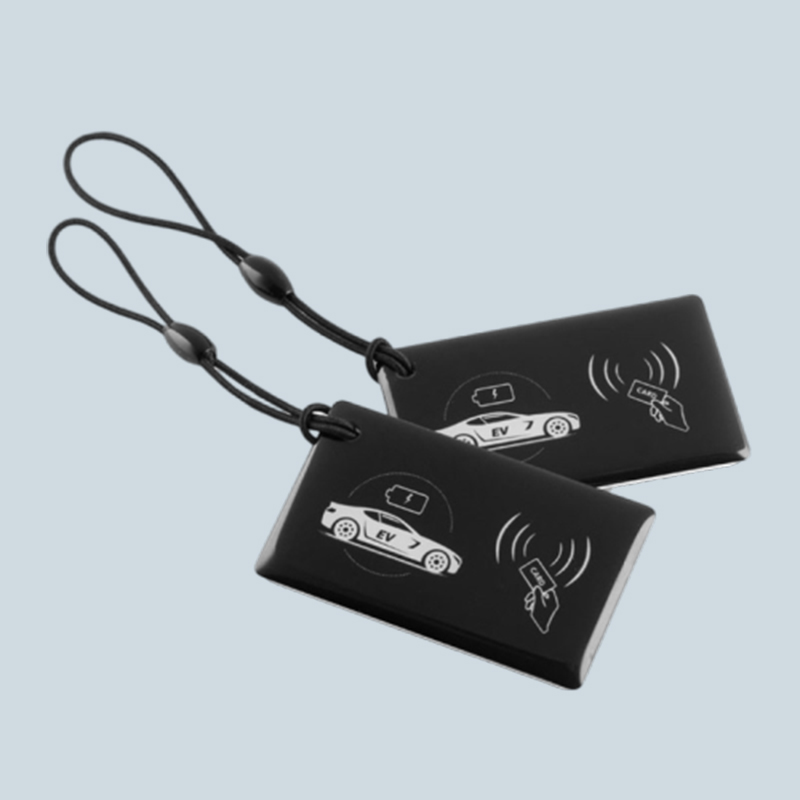

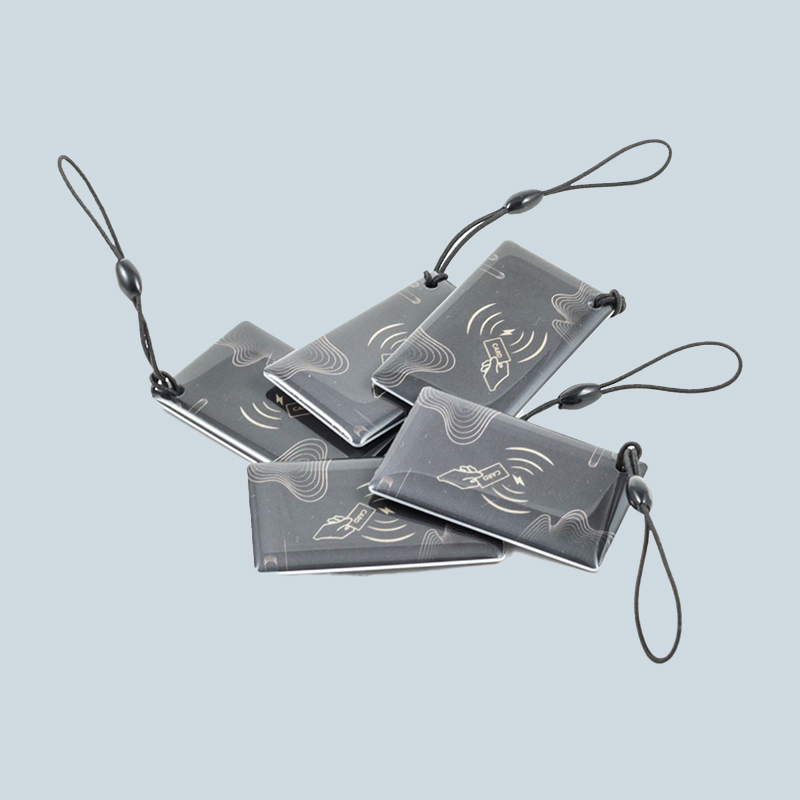

EV Charging Tags

Model No: ETS-RT 09

Description

As the demand for Electric Vehicles is expanding in Indian Market – the need for powerful and robust charging infrastructure is much essential. Manufacturers and operators of EV charging stations possess a major challenge in managing the charging infrastructure. These days, the owners of residential buildings, corporates parks, parking spaces etc. want to equip their spaces with EV chargers to provided value added services to their users. Hence, they need to ensure that the access to EV charging points in given to only authorized users and that the sensitive information related to payment data does not falls in the wrong hands.

Eco Track Systems provides high quality RFID NFC (Near Field Communication) based tags and cards which are extremely secure and reliable ways to overcome above challenges. Our NFC based EV charging tags are 100% compatible with all major EV charging stations used in India. Our RFID EV tags are uniquely designed and customized to suite the project requirements of the user. We provide customize printing, encoding, shapes, form factors etc.

Manufactures of EV vehicles provide their customer with a unique RFID tag which is generally in the form of key fob or card. The tag contains necessary information of the customer and gives them the access to use EV charging stations installed / operated by the manufacturer. This gives them an ease to operate, manage and generate customized reports based on the usage patterns of the customer. It also helps in facilitating cashless user payments which are high secure and encrypted.

Features

RFID-NFC

Authorized Access

Plug and Play use

Cashless Payments

User/ Vehicle Identity

Sleek Design

Light Weight

Easy to carry

Water Proof

Highly rugged & long lasting

Fully customized Printing

Application Areas

Automobile Manufacturer

EV Charger Manufacturer

Logistics

Public Parking Space

RWA

Car Rentals

Corporate Buildings

Technical Specification

Frequency13.56MHz
Standard/ProtocolISO14443A
Chip typeNXP NTAG213/215/216,Ultralight(C),RF11FM08(customized)
Reading range0-10CM(relates with the antenna,reader and working environment)
DimensionDia 25mm,28mm,30mm,25*25mm,28*28mm,30*30mm, 40*25mm(customized)
Surface materialABS/PVC+Imported Epoxy material(hard/soft)
Craft availableSilk screen Printing,Rotary Printing,Offset Printing etc.
Special requirementsBarcode,UID Encoding,URL,Laser carve printing etc.
Data retention time10 years
Reading/Writing endurance100,000 times
Operating temperature-20°C ~ +65°C
